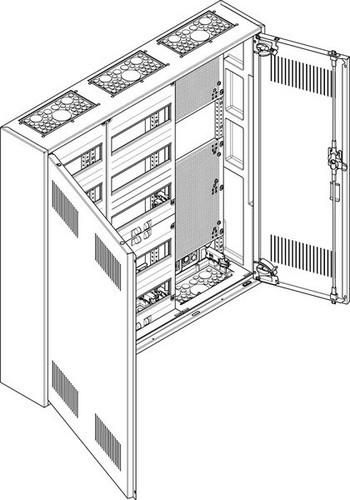

Complete multimedia cabinet, external dimensions WxHxD (mm) 800 x800 x160, width 3, height 5, PLE 180, complete multimedia cabinets, MK, RM series, depth: 160mm, protective insulation, protection class II, protection type: IP43, for devices up to 250 A, colour: RAL 9016 (traffic white), powder-coated, installation: surface-mounted and partially recessed with internal fastening, or external fastening, material: 1 mm sheet steel (housing and door), powder-coated, cable entries: 2K membrane flange bottom and top 35x per field, internal door with opening angle 110°, standard lock can be sealed as standard, prepared for various locking types, tested according to DIN EN 61439-1 (VDE0660 Part 600), MK, RM series for multimedia applications, complete cabinet including, door with Ventilation slots* and distribution panel for, modular devices, including, PE/N plug-in terminals, as well as media panel,
| Property | Value |
| Width in division units: | 36 |
| Number of rows: | 15 |
| Height: | 800 mm |
| Width: | 800 mm |
| Depth: | 160 mm |
| Protection class (IP): | IP43 |
| Color: | white |
| Mounting type: | Surface-mounted |
| With lock: | no |
| Transparent cover/door: | no |
| Housing material: | steel |
| RAL number: | 9016 |
| DIN rail: | yes |
| Mounting option: | yes |
| EMC version: | no |
| With mounting plate: | yes |
| Type of cover: | door |
| Cover design: | with cutout |
| Inner depth: | 95 mm |
| Type of closure: | other |
