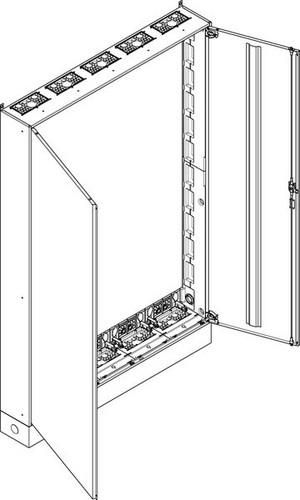

Floor-standing housing, 210mm deep, SF series, protectively insulated Y, external dimensions WxHxD (mm) 1300 x1980 x210, width 5, height 12, PLE 720, floor-standing housing, 210mm deep, SF series, protection class II (SF series), protection class I (SV series), protection type: IP43, for devices up to 630 A, floor-standing installation with internal fastening or external fastening, widths: 300, 550, 800, 1050, 1300 mm, height: 1980mm including 130 mm base, assembled, depth: 210 mm, colour: RAL 9016 (traffic white), space units: 144 to 720, material: 1.5mm sheet steel (door 1mm), powder-coated, pre-punched on both sides for housing connections M6, cable entries 2K membrane flange 35x at the bottom, 35x at the top per field, Can be combined horizontally and vertically, Door inside, right or left, Can be hinged without tools, can be dismantled and adjusted with an opening angle of 110°, Lock, sealable as standard, 3-point rod lock, Prepared for the installation of standardized module kits on NT support profiles or for continuous mounting plates, DIN EN 61439-1 (VDE0660 Part 600-1),
| Property | Value |
| Height: | 1980 mm |
| Width: | 1300 mm |
| Depth: | 210 mm |
| Installation depth: | 190 mm |
| Inner depth: | 225 mm |
| Protection type (IP): | IP43 |
| Protection class: | II |
| Impact resistance: | IK09 |
| Housing material: | Steel |
| RAL number: | 9016 |
| Mounting type: | Floor installation |
| Suitable for outdoor use: | no |
| Surface: | powder-coated |
| Suitable for lightning protection: | yes |
| Mounting option: | yes |
| With mounting plate: | no |
| Number of cable entries: | 320 |
| Number of modules: | 1 |
| Number of openings for flange plates: | 10 |
| Number of rows: | 5 |
| Type of cover: | Door |
| Type of door: | Double |
| Cover design: | without |
| Width in modular units: | 12 |
| Functional integrity: | without |
| Material thickness of housing: | 1.5 mm |
| Material thickness of door/cover: | 2 mm |
| With lock: | no |
| Nominal current (In): | 630 A |
| Transparent cover/door: | no |
| Color: | white |
| Protection class (NEMA): | other |
