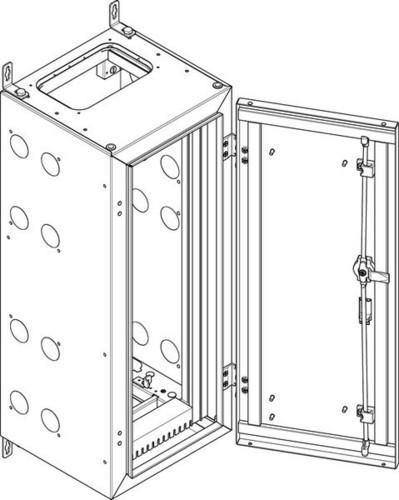

ABN WxHxD:340x840x340mm wall housing (NT15P)

Wall housing, 340mm deep, protectively insulated Y, external dimensions WxHxD (mm) 340 x840 x340, width 1, height 5, PLE 60, wall housing, 340mm deep, protection class II (series NT, P), protection class I (series NT, E), protection type: IP55, for devices up to 630 A, wall mounting with external fastening, widths: 340, 590, 840, 1090, 1340 mm, heights: 690, 840, 990, 1140, 1290, 1440 mm, depth: 280 mm, colour: RAL 9016 (traffic white), space units: 48 to 540, material: 1.5mm (doors 2mm) sheet steel, powder-coated, pre-punched on both sides for housing connections M6 and screw connection M50, cable entry plates of your choice with metric pre-punches, membrane flange or foam rubber plate, can be combined horizontally and vertically, door surface-mounted, right or left, can be hinged with an opening angle of 180°, 3mm double-bit lock with 3-point rod lock, prepared for the installation of standardized module kits on NT/ST support profiles or for continuous mounting plates including, scaffold bracket NGTU10N2*, DIN EN 61439-1 (VDE0660 Part 600-1), * Note NGTU10N2:, scaffold brackets are included as follows:, field width 1 and 2 (340mm and 590mm)-1 set, field width 3 and 4 (840mm and 1090mm)-2 sets, field width 5 (1340mm)-3 sets,
