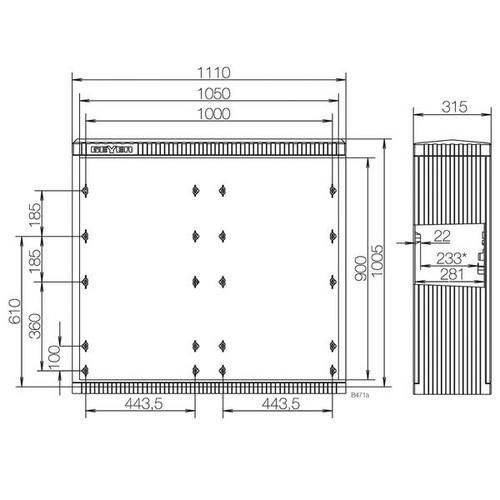

Cable distribution cabinet with mounting plate FB4, BH6, 1 cylinder installed
| Property | Value |
| Height: | 1005 mm |
| Width: | 1110 mm |
| Depth: | 315 mm |
| Installation depth: | 905 mm |
| Inner depth: | 255 mm |
| Protection type (IP): | IP43 |
| Protection class: | II |
| Impact resistance: | IK10 |
| Housing material: | Plastic |
| RAL number: | 7035 |
| Mounting type: | Floor installation |
| Suitable for outdoor use: | yes |
| Surface: | untreated |
| Suitable for lightning protection: | no |
| Mounting option: | yes |
| With mounting plate: | yes |
| Number of modules: | 4 |
| Number of openings for flange plates: | 1 |
| Type of cover: | Door |
| Type of door: | Single |
| Version Cover: | closed |
| Width in modular units: | 48 |
| Functional integrity: | without |
| Material thickness housing: | 3 mm |
| Material thickness door/cover: | 3 mm |
| With lock: | yes |
| Rated current (In): | 500 A |
| Transparent cover/door: | no |
| Color: | gray |
| Protection class (NEMA): | other |
Features
HAB
FB4 BH6 1 cylinder
Manufacturer
HAN
SL102P
GTIN
4015153173064
Cultivation option
Yes
Number of modules
4
Number of openings for flange plates
1
Type of cover
Door
Type of door
Singles
Cover design
Closed
Width
1110 mm
Width in pitch units
48
Installation depth
905 mm
Color
Functional preservation
Without
Suitable for outdoor use
Yes
Suitable for lightning protection
No
Height
1005 mm
Internal depth
255 mm
Housing material thickness
3 mm
Material thickness door/lid
3 mm
With mounting plate
Yes
With lock
Yes
Mounting type
Floor installation
Nominal current (In)
500A
Surface
Untreated
RAL number
7035
Impact resistance
IK10
IP protection)
IP43
Protection class (NEMA)
Other
Protection class
II
Depth
315 mm
Transparent lid/door
No
Housing material
Plastic
