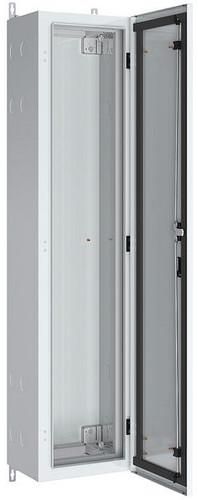

Wall housing earthed IP55 W x H x D: 340 x 1440 x 280mm
| Property | Value |
| Height: | 1440 mm |
| Width: | 340 mm |
| Depth: | 280 mm |
| Installation depth: | 250 mm |
| Inner depth: | 280 mm |
| Protection type (IP): | IP55 |
| Protection class: | I |
| Impact resistance: | IK10 |
| Housing material: | Sheet steel/plastic |
| RAL number: | 9016 |
| Mounting type: | Surface-mounted |
| Suitable for outdoor use: | no |
| Surface: | powder-coated |
| Suitable for lightning protection: | yes |
| Mounting option: | yes |
| With mounting plate: | no |
| Number of cable entries: | 1 |
| Number of modules: | 1 |
| Number of openings for flange plates: | 2 |
| Number of rows: | 1 |
| Type of cover: | Door |
| Type of door: | Single |
| Cover design: | without |
| Width in division units: | 12 |
| Functional integrity: | without |
| Material thickness housing: | 1.5 mm |
| Material thickness door/cover: | 2 mm |
| With lock: | no |
| Nominal current (In): | 630 A |
| Transparent Lid/door: | no |
| Color: | white |
| Protection class (NEMA): | other |
Features
HAB
Earthed IP55 340x1440x280mm
Manufacturer
HAN
NF19E
GTIN
4015153574977
Cultivation option
Yes
Number of cable entries
1
Number of modules
1
Number of rows
1
Number of openings for flange plates
2
Type of cover
Door
Type of door
Singles
Cover design
Without
Width
340 mm
Width in pitch units
12
Installation depth
250 mm
Color
Functional preservation
Without
Suitable for outdoor use
No
Suitable for lightning protection
Yes
Height
1440 mm
Internal depth
280 mm
Housing material thickness
1.5 mm
Material thickness door/lid
2 mm
With mounting plate
No
With lock
No
Mounting type
Surface-mounted
Nominal current (In)
630A
Surface
Powder coated
RAL number
9016
Impact resistance
IK10
IP protection)
IP55
Protection class (NEMA)
Other
Protection class
I
Depth
280 mm
Transparent lid/door
No
Housing material
Sheet steel/plastic
