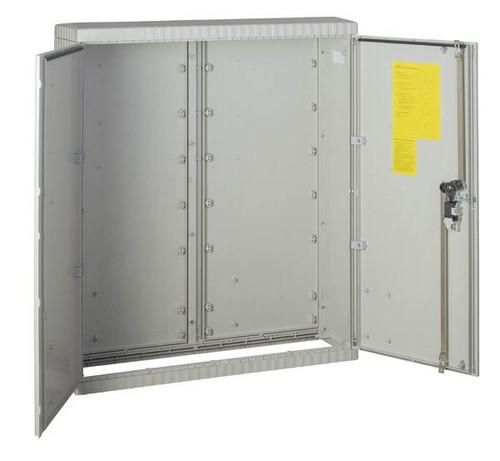

SL132 Gr.2/1355 1 cylinder cable distribution cabinet Manufacturer article number: SL132
| Property | Value |
| Height: | 1355 mm |
| Width: | 1110 mm |
| Depth: | 315 mm |
| Installation depth: | 1255 mm |
| Inner depth: | 255 mm |
| Protection type (IP): | IP43 |
| Protection class: | II |
| Impact resistance: | IK10 |
| Housing material: | Plastic |
| RAL number: | 7035 |
| Mounting type: | Floor installation |
| Suitable for outdoor use: | yes |
| Surface: | untreated |
| Suitable for lightning protection: | no |
| Mounting option: | yes |
| With mounting plate: | yes |
| Number of modules: | 4 |
| Number of openings for flange plates: | 1 |
| Type of cover: | door |
| Type of Door: | Single |
| Cover design: | closed |
| Width in modular units: | 48 |
| Functional integrity: | without |
| Material thickness housing: | 3 mm |
| Material thickness door/cover: | 3 mm |
| With lock: | yes |
| Rated current (In): | 630 A |
| Transparent cover/door: | no |
| Color: | gray |
| Protection class (NEMA): | other |
Features
HAB
SL132 Gr.2/1355 1 cylinder
Manufacturer
HAN
SL132
GTIN
4015153170681
Cultivation option
Yes
Number of modules
4
Number of openings for flange plates
1
Type of cover
Door
Type of door
Singles
Cover design
Closed
Width
1110 mm
Width in pitch units
48
Installation depth
1255 mm
Color
Functional preservation
Without
Suitable for outdoor use
Yes
Suitable for lightning protection
No
Height
1355 mm
Internal depth
255 mm
Housing material thickness
3 mm
Material thickness door/lid
3 mm
With mounting plate
Yes
With lock
Yes
Mounting type
Floor installation
Nominal current (In)
630A
Surface
Untreated
RAL number
7035
Impact resistance
IK10
IP protection)
IP43
Protection class (NEMA)
Other
Protection class
II
Depth
315 mm
Transparent lid/door
No
Housing material
Plastic
