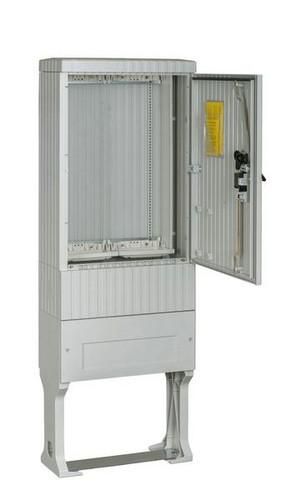

SL175VT H:175mm 2-FB BauH:5 ESPRO connection column Manufacturer article number: SL175VT
| Property | Value |
| Height: | 1710 mm |
| Width: | 583 mm |
| Depth: | 277 mm |
| Installation depth: | 1610 mm |
| Inner depth: | 217 mm |
| Protection type (IP): | IP44 |
| Protection class: | II |
| Impact resistance: | IK10 |
| Housing material: | Plastic |
| RAL number: | 7035 |
| Mounting type: | Floor installation |
| Suitable for outdoor use: | yes |
| Surface: | untreated |
| Suitable for lightning protection: | no |
| Mounting option: | yes |
| With mounting plate: | no |
| Number of modules: | 2 |
| Number of openings for flange plates: | 1 |
| Type of cover: | Door |
| Type of door: | Single |
| Version Cover: | closed |
| Width in modular units: | 24 |
| Functional integrity: | without |
| Material thickness housing: | 3 mm |
| Material thickness door/cover: | 3 mm |
| With lock: | yes |
| Rated current (In): | 400 A |
| Transparent cover/door: | no |
| Color: | gray |
| Protection class (NEMA): | other |
Features
HAB
SL175VT H:175mm 2-FB BauH:5
Manufacturer
HAN
SL175VT
GTIN
4015153565630
Cultivation option
Yes
Number of modules
2
Number of openings for flange plates
1
Type of cover
Door
Type of door
Singles
Cover design
Closed
Width
583 mm
Width in pitch units
24
Installation depth
1610 mm
Color
Functional preservation
Without
Suitable for outdoor use
Yes
Suitable for lightning protection
No
Height
1710 mm
Internal depth
217 mm
Housing material thickness
3 mm
Material thickness door/lid
3 mm
With mounting plate
No
With lock
Yes
Mounting type
Floor installation
Nominal current (In)
400A
Surface
Untreated
RAL number
7035
Impact resistance
IK10
IP protection)
IP44
Protection class (NEMA)
Other
Protection class
II
Depth
277 mm
Transparent lid/door
No
Housing material
Plastic
