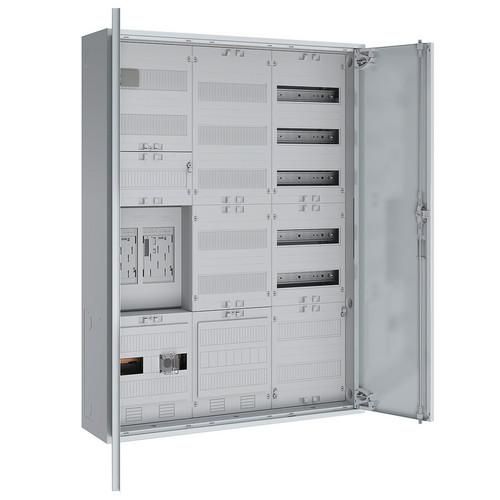

Complete cabinet consisting of: 1x eHZ cassette wired with OKK and 5-pin main line branch terminal, 5-pin busbar system, 5x connection terminals 16 mm², 1x meter reserve space, 1x distribution panel 5-row with APZ room including RJ45 interface
| Property | Value |
| Number of meter spaces: | 2 |
| Number of distribution rows: | 2 |
| Number of fields: | 3 |
| Height: | 1100 mm |
| Width: | 800 mm |
| Depth: | 210 mm |
| Protection class (IP): | IP31 |
| Version: | eHZ |
| Lower connection compartment: | with 5-pole busbar |
| Material: | Sheet steel |
| With mounting plate: | no |
| Mounting type: | Surface-mounted |
| Installation width: | 800 mm |
| Installation height: | 1100 mm |
| Installation depth: | 210 mm |
Features
Number of fields
3
HAB
Heat pump eHZ
Manufacturer
HAN
S37EA320FR
GTIN
4015153835764
Number of distribution rows
2
Number of meter slots
2
Version
EHZ
Width
800 mm
Installation width
800 mm
Installation height
1100 mm
Installation depth
210 mm
Height
1100 mm
With mounting plate
No
Mounting type
Surface-mounted
IP protection)
IP31
Depth
210 mm
Lower connection compartment
With busbar 5-pole
Material
Sheet steel
