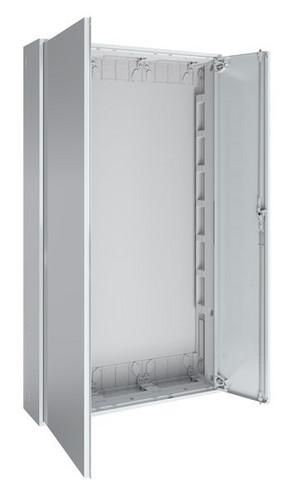

System housing for meter box and distribution technology as a protectively insulated, low-halogen empty sheet steel housing. System PROFIKS protection class IP 43, DIN0603, DIN 43870, suitable for surface-mounted, flush-mounted and partially recessed installation. Color: white, RAL 9016 Housing can be combined. With cable entry options at the top, bottom and rear. Pre-stamped feed-through options on the side, side cable entries. Door made of sheet steel, tool-free installation, removal and adjustment of the door. Width 13, height 9, external dimensions: width: 800 mm, height: 1400 mm, depth: 210 mm
| Property | Value |
| Height: | 1400 mm |
| Width: | 800 mm |
| Depth: | 210 mm |
| Installation depth: | 190 mm |
| Inner depth: | 190 mm |
| Protection type (IP): | IP43 |
| Protection class: | II |
| Impact resistance: | IK09 |
| Housing material: | Sheet steel/plastic |
| RAL number: | 9016 |
| Mounting type: | Surface-mounted |
| Suitable for outdoor use: | no |
| Surface: | powder-coated |
| Suitable for lightning protection: | yes |
| Mounting option: | yes |
| With mounting plate: | no |
| Number of cable entries: | 240 |
| Number of modules: | 1 |
| Number of openings for flange plates: | 6 |
| Number of rows: | 3 |
| Type of cover: | Door |
| Type of door: | Double |
| Cover design: | without |
| Width in division units: | 36 |
| Functional integrity: | without |
| Material thickness housing: | 1.5 mm |
| Material thickness door/cover: | 2 mm |
| With lock: | no |
| Nominal current (In): | 400 A |
| Transparent Lid/door: | no |
| Color: | white |
| Protection class (NEMA): | other |
Features
HAB
S39 protective. WxHxD: 800x1400x210mm
Manufacturer
HAN
S39
GTIN
4015153000209
Cultivation option
Yes
Number of cable entries
240
Number of modules
1
Number of rows
3
Number of openings for flange plates
6
Type of cover
Door
Type of door
Double
Cover design
Without
Width
800 mm
Width in pitch units
36
Installation depth
190 mm
Color
Functional preservation
Without
Suitable for outdoor use
No
Suitable for lightning protection
Yes
Height
1400 mm
Internal depth
190 mm
Housing material thickness
1.5 mm
Material thickness door/lid
2 mm
With mounting plate
No
With lock
No
Mounting type
Surface-mounted
Nominal current (In)
400A
Surface
Powder coated
RAL number
9016
Impact resistance
IK09
IP protection)
IP43
Protection class (NEMA)
Other
Protection class
II
Depth
210 mm
Transparent lid/door
No
Housing material
Sheet steel/plastic
