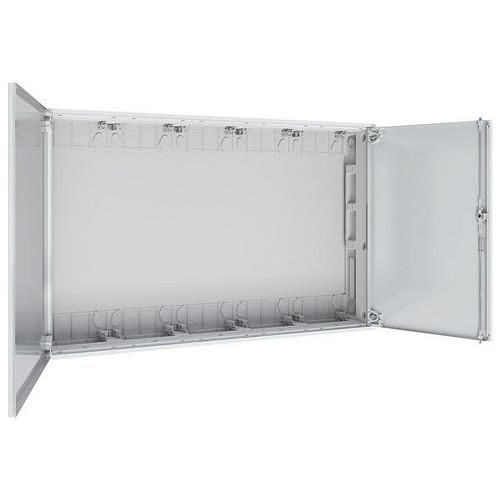

Wall housing, 210 mm deep, double insulated Y. External dimensions W x H x D (mm) 1300 x 800 x 210. Width 5. Height 5. PLE 300. Wall housing, 210 mm deep. Protection class II (S series), protection class I (SV series). Protection type: IP43. For devices up to 400 A. Flush-mounted, surface-mounted and partially recessed installation with. Internal fastening or external fastening. Widths: 300, 550, 800, 1050, 1300 mm. Heights: 500, 650, 800, 950, 1100, 1250, 1400 mm. Depth: 210 mm. Color: RAL 9016 (traffic white). Space units: 36 to 540. Material: 1 mm sheet steel (housing and door), powder-coated. Pre-punched on both sides for busbar bushing 300 x 80 mm and M50 screw connection. Cable entries 2K membrane flange at the bottom and top, 35 x per field. Can be combined horizontally and vertically. Door inside, can be hinged on the right or left, without tools. Can be dismantled and adjusted with an opening angle of 110°, lock. Sealable as standard, 3-point rod lock from 1250 mm. height or 2-door version. Prepared for the installation of standardized module kits. on NT support profiles or for continuous mounting plates. DIN EN 61439-1 (VDE0660 Part 600-1).
| Property | Value |
| Height: | 800 mm |
| Width: | 1300 mm |
| Depth: | 210 mm |
| Installation depth: | 190 mm |
| Inner depth: | 200 mm |
| Protection type (IP): | IP43 |
| Protection class: | II |
| Impact resistance: | IK09 |
| Housing material: | Sheet steel/plastic |
| RAL number: | 9016 |
| Mounting type: | Surface-mounted |
| Suitable for outdoor use: | no |
| Surface: | powder-coated |
| Suitable for lightning protection: | yes |
| Mounting option: | yes |
| With mounting plate: | no |
| Number of cable entries: | 400 |
| Number of modules: | 1 |
| Number of openings for flange plates: | 10 |
| Number of rows: | 5 |
| Type of cover: | Door |
| Type of door: | Double |
| Cover design: | without |
| Width in modular units: | 60 |
| Functional integrity: | without |
| Material thickness of housing: | 1.5 mm |
| Material thickness of door/cover: | 2 mm |
| With lock: | no |
| Nominal current (In): | 400 A |
| Transparent Lid/door: | no |
| Color: | white |
| Protection class (NEMA): | other |
