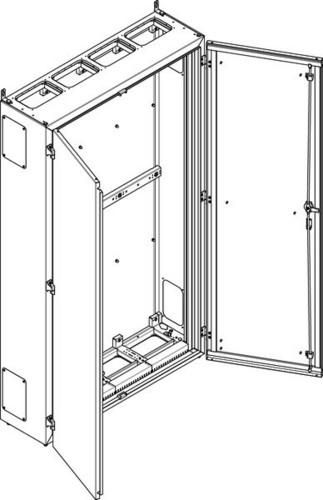

Floor-standing housing, 340 mm deep, NT...P series, double-insulated Y, closed on the sides. External dimensions W x H x D (mm) 1090 x 1890 x 340. Width 4. Height 12. PLE 576. Floor-standing housing, 340 mm deep, NT...P series. Protection class II (NT...P series), protection class I (NT...E series). Protection type: IP55 (only in conjunction with cable entry plates). For devices up to 1200 A. Floor-standing installation with external fastening. Widths: 340, 590, 840, 1090, 1340 mm. Height: 1890 mm without base. Depth: 340 mm. Color: RAL 9016 (traffic white). Space units: 144 to 720. Material: 1.5 mm (doors 2 mm) sheet steel, powder-coated. On both sides either with closed feed-through openings or open (B). Cable entry plates of your choice with metric pre-punches, membrane flange or foam rubber plate. Can be combined horizontally and vertically. Door surface-mounted, can be hinged on the right or left with an opening angle of 180°, 3 mm double-bit lock with 3-point rod lock. Prepared for the installation of standardized module kits on NT support profiles or for continuous mounting plates including scaffolding bracket NGTU10N2*. DIN EN 61439-1 (VDE0660 Part 600-1). * Note NGTU10N2:. Scaffolding brackets are included as follows:. Field width 1 and 2 (340 mm and 590 mm) - 1 set. Field width 3 and 4 (840 mm and 1090 mm) - 2 sets. Field width 5 (1340 mm) - 3 sets.
| Property | Value |
| Height: | 1890 mm |
| Width: | 1090 mm |
| Depth: | 340 mm |
| Installation depth: | 305 mm |
| Inner depth: | 340 mm |
| Protection type (IP): | IP55 |
| Protection class: | II |
| Impact resistance: | IK10 |
| Housing material: | Sheet steel/plastic |
| RAL number: | 9016 |
| Mounting type: | Floor installation |
| Suitable for outdoor use: | no |
| Surface: | powder-coated |
| Suitable for lightning protection: | yes |
| Mounting option: | yes |
| With mounting plate: | no |
| Number of cable entries: | 1 |
| Number of modules: | 1 |
| Number of openings for flange plates: | 8 |
| Number of rows: | 4 |
| Type of cover: | Door |
| Type of door: | Double |
| Cover design: | without |
| Width in division units: | 48 |
| Functional integrity: | without |
| Material thickness housing: | 1.5 mm |
| Material thickness door/cover: | 2 mm |
| With lock: | no |
| Nominal current (In): | 1200 A |
| Transparent Lid/door: | no |
| Color: | white |
| Protection class (NEMA): | other |
