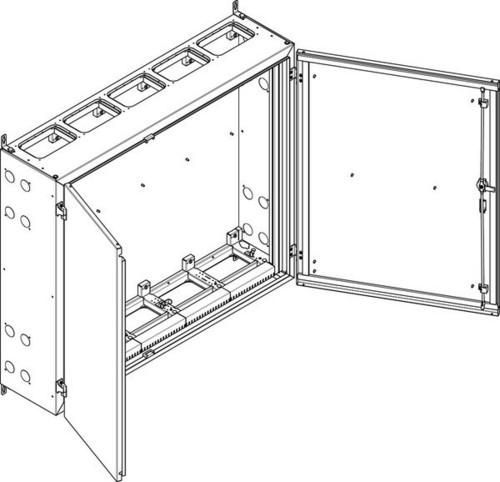

Wall housing, 340 mm deep, double insulated Y. External dimensions W x H x D (mm) 1340 x 1140 x 340. Width 5. Height 7. PLE 420. Wall housing, 340 mm deep. Protection class II (NT..P series), protection class I (NT..E series). Protection type: IP55. For devices up to 630 A. Wall mounting with external fastening. Widths: 340, 590, 840, 1090, 1340 mm. Heights: 690, 840, 990, 1140, 1290, 1440 mm. Depth: 280 mm. Color: RAL 9016 (traffic white). Space units: 48 to 540. Material: 1.5 mm (doors 2 mm) sheet steel, powder-coated. Pre-punched on both sides for M6 housing connections and M50 screw connections. Cable entry plates of your choice with metric pre-punches, membrane flange or foam rubber plate. Can be combined horizontally and vertically. Door can be placed on the right or left with an opening angle of 180°. 3 mm double-bit lock with 3-point rod lock. Prepared for the installation of standardized module kits on NT/ST support profiles or for continuous mounting plates including support frame bracket NGTU10N2*. DIN EN 61439-1 (VDE0660 Part 600-1). * Note NGTU10N2:. Support frame brackets are included as follows:. Field width 1 and 2 (340 mm and 590 mm) - 1 set. Field width 3 and 4 (840 mm and 1090 mm) - 2 sets. Field width 5 (1340 mm) - 3 sets.
| Property | Value |
| Height: | 1140 mm |
| Width: | 1340 mm |
| Depth: | 340 mm |
| Installation depth: | 305 mm |
| Inner depth: | 340 mm |
| Protection type (IP): | IP55 |
| Protection class: | II |
| Impact resistance: | IK10 |
| Housing material: | Sheet steel/plastic |
| RAL number: | 9016 |
| Mounting type: | Surface-mounted |
| Suitable for outdoor use: | no |
| Surface: | powder-coated |
| Suitable for lightning protection: | yes |
| Mounting option: | yes |
| With mounting plate: | no |
| Number of cable entries: | 1 |
| Number of openings for flange plates: | 10 |
| Number of rows: | 5 |
| Type of cover: | Door |
| Type of door: | Double |
| Cover design: | without |
| Width in modular units: | 60 |
| Functional integrity: | without |
| Material thickness of housing: | 1.5 mm |
| Material thickness of door/cover: | 2 mm |
| With lock: | no |
| Nominal current (In): | 1200 A |
| Transparent cover/door: | no |
| Color: | white |
| Protection class (NEMA): | other |
