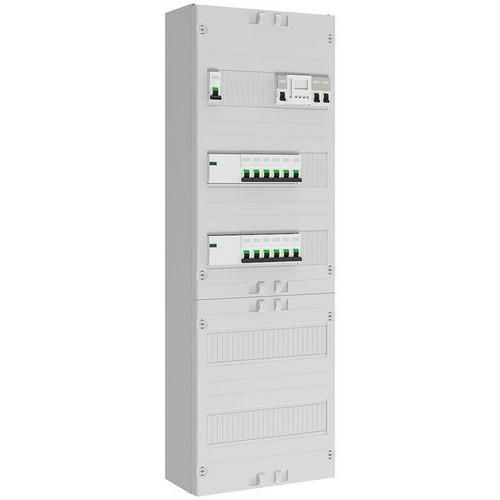

Distribution panel for street lighting column consisting of: 1x distribution panel 5-row in deep design with side partitions, 1x assembly package wired to terminal blocks consisting of: 12x circuit breaker B 16A, 2x installation contactor 63A 4S, 1x circuit breaker B 10A, 1x twilight switch 1S, 1x digital timer 1C 24/7, 2x group switch 20A 3 position, 12x isolating terminals 10mm², 1x main line branch terminal 5-pin and 3x connection terminals
| Property | Value |
| Height: | 755 mm |
| Width: | 250 mm |
| Depth: | 141 mm |
| Number of DIN rails: | 5 |
| Number of pitch units per DIN rail: | 12 |
| With N-PE terminals: | yes |
| With cover: | yes |
| Type of cover: | with cutout |
| With mounting plate: | no |
Features
Number of pitch units per DIN rail
12
Number of DIN rails
5
HAB
Deep 5R STAS with 12xLSA WxH: 250x750mm
Manufacturer
HAN
VT15RK1502
GTIN
4015153785298
Type of cover
With cutout
Width
250 mm
Height
755 mm
With cover
Yes
With mounting plate
No
With N-PE terminals
Yes
Depth
141 mm
