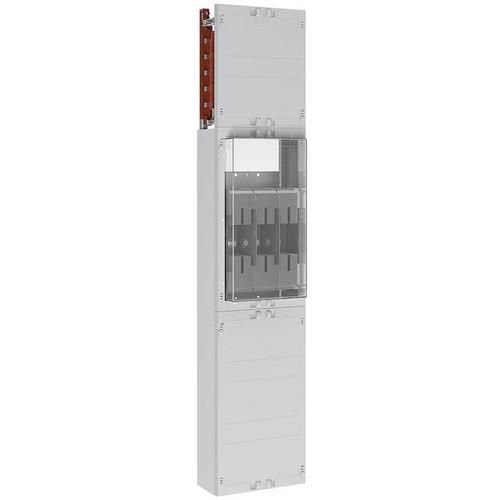

consisting of: Mains-side connection compartment (NAR, top), H x W (mm): 300 x 250: With 40mm busbars, 355A, 5-pole (Cu 2x12 x5mm), Cover perforated for overvoltage protection, Mains-side separation point As house connection fuse, H x W (mm): 450 x 250: NH2 fuse element, 3x1-pole, on mounting crossbar, With main current wiring 150mm² On 40mm busbars and sealable cover with transparent hood, Mains-side connection compartment (NAR, bottom), H x W (mm): 450 x 250: Empty space with N+PE connection lug
| Property | Value |
| Height: | 1205 mm |
| Width: | 250 mm |
| Depth: | 166.11 mm |
| Number of division units per DIN rail: | 12 |
| With N-PE terminals: | no |
| With cover: | yes |
| Type of cover: | closed |
| With mounting plate: | no |
Features
Number of pitch units per DIN rail
12
HAB
M.NH2 base 3x1p 5-pin.WxH:250x1200
Manufacturer
HAN
VT18SH5131
GTIN
4015153772533
Type of cover
Closed
Width
250 mm
Height
1205 mm
With cover
Yes
With mounting plate
No
With N-PE terminals
No
Depth
166.11 mm
