Description
Features
Reviews

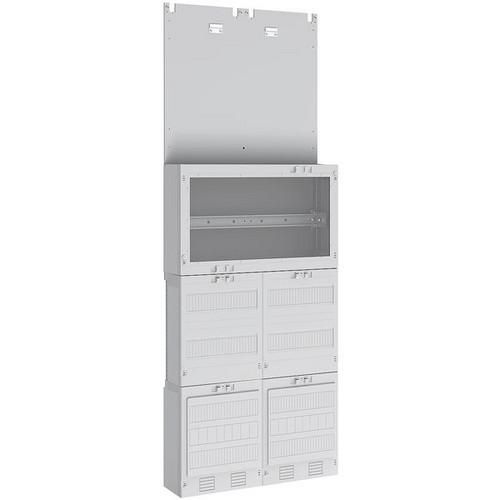

Measuring field consisting of: Holder for meter exchange plate 450mm wide and 520mm high, 1x additional transformer compartment 300mm 24 TE with transparent cover and height-adjustable device support rail, 2x reserve connection compartment 300mm, 1x NAR with 40mm busbar 2x12x5mm, 1x APZ compartment 300mm with RJ45 interface
| Property | Value |
| Height: | 1350 mm |
| Width: | 500 mm |
| Width in modular units: | 24 |
| Design: | 1-storey |
| Connection compartment: | 300 mm |
| Number of distribution rows: | 2 |
| With wiring: | no |
| With mounting plate: | yes |
| Lower connection compartment: | with 5-pole busbar |
| Design Cover: | closed with pre-stamping |
| Main switch rated current: | 250 A |
| Color: | grey |
| RAL number: | 9002 |
| Protection class (IP): | IP20 |
Features
HAB
F.ZWP RWE NAR 40mm SAS 5p APZ
Manufacturer
HAN
ZM209Y5672
GTIN
4015153797499
Connection room
300 mm
Number of distribution rows
2
Version
1-storey
Cover design
Closed with pre-stamping
Width
500 mm
Width in pitch units
24
Color
Main switch rated current
250A
Height
1350 mm
With mounting plate
Yes
With wiring
No
RAL number
9002
IP protection)
IP20
Lower connection compartment
With busbar 5-pole
