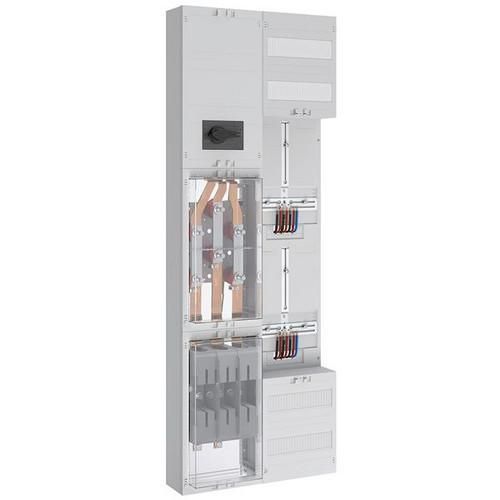

Meter transformer field 200A according to TAB Netze BW consisting of: 1xNAR with NH2 base with transparent cover and N/PE connection, 1x converter module 450mm with converter lugs type A with 30 x 5mm, 1xAAR load break switch 3-pole 250A and terminal for N and PE, 1xAAR 300mm 24 TE, 1x3-point meter space 375mm, 1xFRE space 375mm 3-point, 1x additional converter space 300mm 24 TE equipped with voltage path fuses and converter isolating terminals
| Property | Value |
| Height: | 1350 mm |
| Width: | 500 mm |
| Width in modular units: | 24 |
| Design: | 1-storey |
| Connection compartment: | 300 mm |
| Number of meter spaces: | 2 |
| Number of distribution rows: | 2 |
| With wiring: | yes |
| With mounting plate: | no |
| Lower connection compartment: | with Busbar 5-pole |
| Cover design: | closed with pre-punching |
| Main switch rated current: | 100 A |
| Color: | gray |
| RAL number: | 9002 |
| Protection class (IP): | IP20 |
Features
HAB
200A TAB Networks BW 5-p.Zu=NH1 AB=LA 250A
Manufacturer
HAN
ZW209X0612
GTIN
4015153797505
Connection room
300 mm
Number of distribution rows
2
Number of meter slots
2
Version
1-storey
Cover design
Closed with pre-stamping
Width
500 mm
Width in pitch units
24
Color
Main switch rated current
100A
Height
1350 mm
With mounting plate
No
With wiring
Yes
RAL number
9002
IP protection)
IP20
Lower connection compartment
With busbar 5-pole
