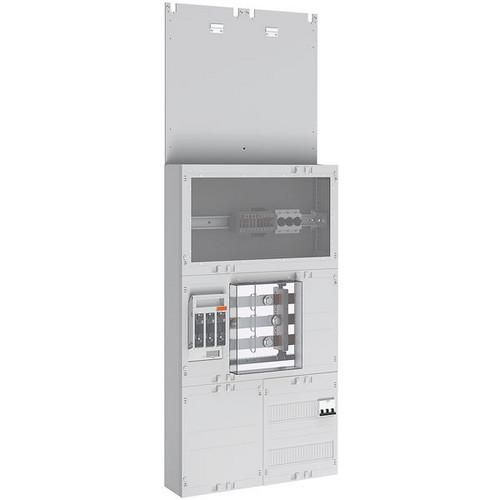

Meter transformer field 100A self-consumption measurement according to TAB Westnetz and Rheinische NETZGesellschaft consisting of: 1x holder for meter exchange plate 450mm wide and 520mm high, 1x additional transformer compartment 300mm 24 TE with transparent cover and height-adjustable device support rail equipped with voltage path fuses and transformer isolating terminals, 1x NAR 300mm with NH00 isolator and N/PE connection, 1x transformer module with transformer lugs design A with 30 x 5mm, 1x AAR with load-break switch 125A, N and PE rail in AAR 12 x 10mm, 2x busbar terminal 70mm², 2x busbar terminal 35mm²
| Property | Value |
| Height: | 1350 mm |
| Width: | 500 mm |
| Width in modular units: | 24 |
| Design: | 1-storey |
| Connection compartment: | 300 mm |
| Number of meter spaces: | 2 |
| Number of distribution rows: | 2 |
| With wiring: | yes |
| With mounting plate: | no |
| Lower connection compartment: | with Busbar 5-pole |
| Cover design: | closed with pre-punching |
| Main switch rated current: | 100 A |
| Color: | gray |
| RAL number: | 9002 |
| Protection class (IP): | IP20 |
Features
HAB
100A 5-p.WN/RNG NW To NH00 SAS From 125A
Manufacturer
HAN
ZW209X2051
GTIN
4015153797529
Connection room
300 mm
Number of distribution rows
2
Number of meter slots
2
Version
1-storey
Cover design
Closed with pre-stamping
Width
500 mm
Width in pitch units
24
Color
Main switch rated current
100A
Height
1350 mm
With mounting plate
No
With wiring
Yes
RAL number
9002
IP protection)
IP20
Lower connection compartment
With busbar 5-pole
