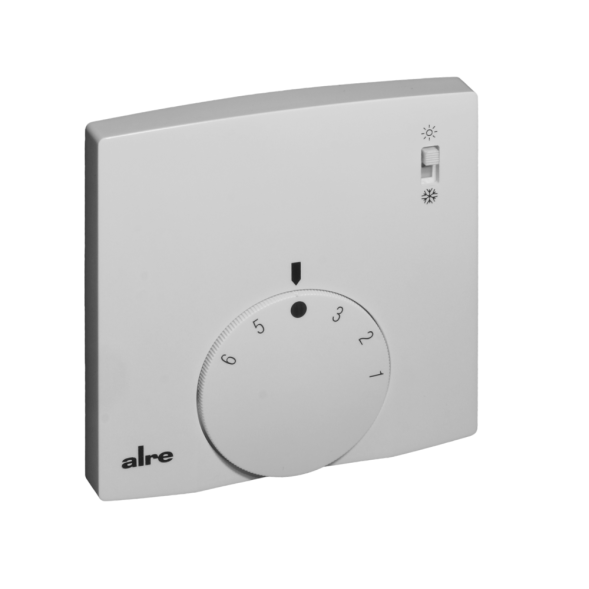

Electromechanical room temperature controller in a super-flat surface-mounted housing (only 13.9 mm deep) for controlling or monitoring temperatures in offices, living rooms and hotels. The thermal feedback achieves a very precise switching difference. The setting range can be changed using the range restriction located under the setting knob. The device is mounted using surface/wall mounting (4-hole fastening on flush-mounted box). Suitable for 2-pipe systems, especially heat pumps. Heating/cooling switching is done using a switch on the device.
| Property | Value |
| Type of power supply: | 230 V AC |
| Mounting type: | Surface-mounted |
| Protection class (IP): | IP30 |
| RAL number: | 9010 |
| Height: | 78 mm |
| Width: | 78.5 mm |
| Depth: | 13.9 mm |
| Heating: | yes |
| Number of heating outputs: | 1 |
| Number of outputs Cooling: | 1 |
| Operation: | Rotary |
| Connection: | three-/four-wire |
| Sensor external: | no |
| Thermal feedback: | parallel |
| Control characteristics: | P |
| Difference value: | 0.5 K |
| Difference adjustable: | no |
| Temperature readable: | no |
| Sensor design: | Bimetal |
| Max. Contact voltage: | 230 V |
| Max. contact load: | 2 A |
| Explosion-proof: | no |
| Temperature controller class: | I |
Features
Operation
Turn
Class of temperature controller
I
Sensor/sensor design
Bimetal
Temperature can be read
No
HAB
RTBSB-201.065/02 Multi-digit scale
Manufacturer
HAN
MA300502
GTIN
4050528050021
Width
78.5 mm
Explosion-proof
No
Height
78 mm
Mounting type
Surface-mounted
RAL number
9010
IP protection)
IP30
Depth
13.9 mm
