Description

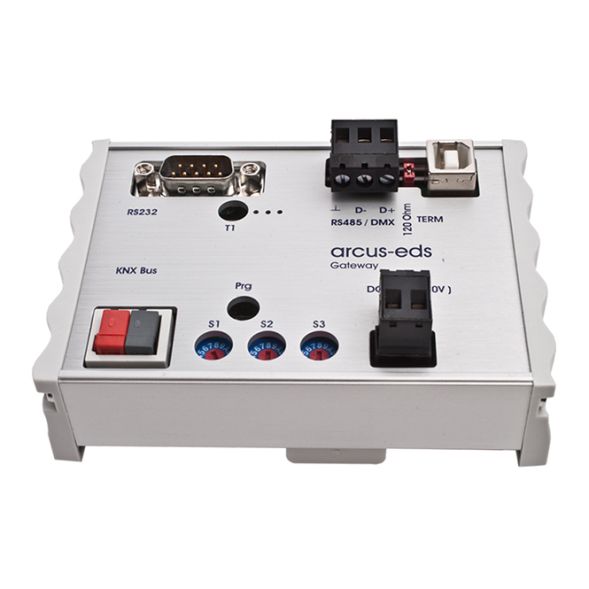

![CDATA[The KNX-DMX Gateway is an interface between the KNX bus and the DMX512 bus. It connects elements from the field of building automation with a variety of devices from the multimedia sector. Technical specifications: Protection class: IP20 Temperature range: -5 degrees Celsius to 45 degrees Celsius Controls: - 3x 16-stage rotary switch - 1x T1 button - 1x PRG button and LED USB connection: USB type B KNX connection: KNX terminal block KNX supply: 20 to 32VDC / approx. 150mW DMX connection: 3-way screw terminal 0.8mm² Terminating resistor DMX512: 120 Ohm via jumper Power supply: 9 to 30VDC, 100mA, internally galvanically isolated, reverse polarity protected DMX512 bus: - RS485 250 kBaud, galvanically isolated - DMX512 protocol Dimensions: 107 x 75 x 31 mm DIN rail device (6 HP) For further information/technical data, please refer to the manufacturer's data sheet (under Documentation).]]>
Features
Compatible with Google Assistant
N/A
Thread
No
Other bus systems
-
Operation via Bluetooth
No
EAN
0642125990066
Siemens LOGO!
No
Hager KNXeasy
No
KNX-Secure
No
Mbus
No
Modbus TCP
No
Samsung SmartThings
N/A
Wi-Fi
No
Zigbee
No
With Netatmo
No
Amazon Alexa
N/A
BAB-Tec
No
Gira One
No
JUNG HOME
No
KNX-RF
No
KNX-TP
Yes
Matter
No
Modbus
No
On-site/manual operation
No
Shelly
No
Theben LUXORliving
No
Wiser Home
No
Division units
-
Manufacturer type
KNX-GW2-DMX
Transmission type
Cable
Apple HomeKit
N/A
Casambi
No
ENOcean
No
Integrated controller
No
KNX USB interface
Yes
Modbus RTU
No
DALI
No
Class
DMX gateway
Free@home
No
HAN
40200186
Manufacturer
ARCUS
GTIN
0642125990066
Mounting type
series installation
Dimming DALI-2
No
