Motion detector with downward detection for seamless monitoring, movable ball head, zero crossing switching, additional functions adjustable via optional remote control, easy installation with plug-in base, detection area can be limited by cover slats, special base for outside corner installation included!, factory setting 3 min and 20 lux
| Property | Value |
| Depth: | 110.0 mm |
| Width: | 68.0 mm |
| Height: | 78.0 mm |
| Version: | motion detector |
| Color: | white |
| Nominal voltage: | 240 V |
| RAL number (similar): | 9010.0 |
| Material: | plastic |
| Response brightness: | 2 to 500 lx |
| Protection class (IP): | IP54 |
| Max. switching capacity: | 2000 W |
| Voltage type: | AC |
| Max. range to one side: | 16 m |
| Suitable for wall mounting: | yes |
| Min. duty cycle: | 15 s |
| Max. Duty cycle: | 16 min |
| Creep-under protection/rear field monitoring: | no |
| Temperature: | -25 to 50 °C |
| Response brightness adjustable: | yes |
| Response sensitivity adjustable: | yes |
| Max. Frontal range: | 9 m |
| Sensor type: | passive infrared |
| Optimal mounting height: | 2.5 m |
| Surface finish: | matt |
| Surface: | untreated |
| Material quality: | other |
| Detection field diameter on floor: | 20 m |
| Control current: | 2 mA |
| Number of switching zones: | 620.0 |
| Frequency: | 50 to 60 Hz |
| Halogen-free: | yes |
| HVAC control: | no |
| Animal corridor: | no |
| Networkable: | no |
| Staircase monitoring: | yes |
| Bypass switch: | no |
| Suitable for wireless transmission: | no |
| Remote controllable: | yes |
| With signal unit: | no |
| Alarm function: | no |
| Teach function for Response brightness: | yes |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | no |
| With DALI interface: | no |
| Extension input: | no |
| Suitable for ceiling mounting: | no |
| Antibacterial treatment: | no |
| Impact resistance: | IK02 |
Features
Bridging switch
No
With signal unit
No
Number of switching zones
620.0
Response brightness
2 to 500 lux
HAB

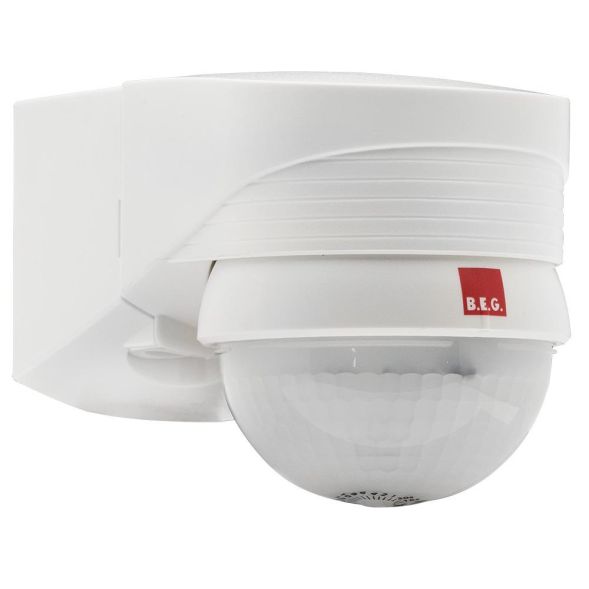

Luxomat LC-plus 280° white
Manufacturer
HAN
91008
GTIN
4007529910083
Dimming function with dimming insert
No
Alarm function
No
Response sensitivity adjustable
Yes
Response brightness adjustable
Yes
Antibacterial treatment
No
Version
Motion detector
Surface finish
Frosted
Width
68.0 mm
Detection field diameter on floor
20m
Color
Remote controllable
Yes
Frequency
50 to 60 Hz
Suitable for C-load
No
Suitable for ceiling mounting
No
Suitable for wall mounting
Yes
Suitable for wireless transmission
No
HVAC control
No
Halogen free
Yes
Height
78.0 mm
Max. duty cycle
16 min
Max. range frontal
9m
Max. range to one side
16m
Max. switching capacity
2000W
Min. duty cycle
15s
With DALI interface
No
With remote
No
Extension input
No
Nominal voltage
240V
Surface
Untreated
Optimal mounting height
2.5m
RAL number (similar)
9010.0
Impact resistance
IK02
IP protection)
IP54
Sensor type
Passive infrared
Voltage type
AC
Teach function for response brightness
Yes
Temperature
-25 to 50 °C
Depth
110.0 mm
Animal corridor
No
Transparent
No
Staircase monitoring
Yes
Creep protection/rear field monitoring
No
Networkable
No
Material
Plastic
Material quality
Other
