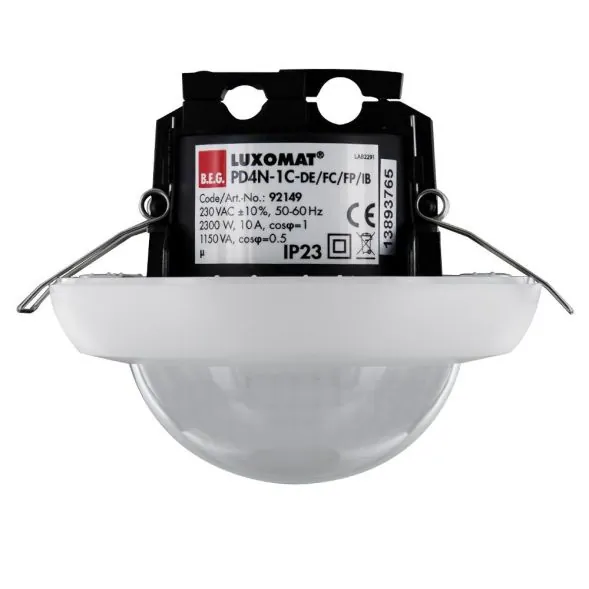

Remote-controlled ceiling motion detector with a long range, One channel for switching light, Switching at zero crossing, Special optical system for detecting even the smallest movements, Uninterrupted parallel connection detection of several detectors, Manual switching via button possible, Additional functions can be set via optional remote control, Factory setting 10 min and 500 lux
| Property | Value |
| Height: | 90.0 mm |
| Design: | motion detector |
| Color: | white |
| Nominal voltage: | 240 V |
| RAL number (similar): | 9010.0 |
| Material: | plastic |
| Mounting type: | other |
| Response brightness: | 20 to 2000 lx |
| Protection class (IP): | IP23 |
| Max. Switching capacity: | 2300 W |
| Voltage type: | AC |
| Max. range to one side: | 12 m |
| Suitable for wall mounting: | no |
| Min. duty cycle: | 15 s |
| Max. duty cycle: | 30 min |
| Creep-by protection/rear field monitoring: | yes |
| Temperature: | -25 to 50 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. Presence area: | 32.0 m² |
| Max. frontal range: | 8 m |
| Max. Inrush current: | 165 A |
| Sensor type: | passive infrared |
| Optimal mounting height: | 2.5 m |
| Surface finish: | matt |
| Surface: | untreated |
| Material quality: | other |
| Detection field diameter on floor: | 24 m |
| Control current: | 2 mA |
| Number of switching zones: | 450.0 |
| Frequency: | 50 to 60 Hz |
| Halogen-free: | yes |
| HVAC control: | no |
| Animal corridor: | no |
| Networkable: | no |
| Staircase monitoring: | yes |
| Bypass switch: | no |
| Suitable for wireless transmission: | no |
| Remote controllable: | yes |
| With signal unit: | no |
| Alarm function: | no |
| Teach function for Response brightness: | yes |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | no |
| With DALI interface: | no |
| Extension input: | no |
| Suitable for ceiling mounting: | yes |
| Antibacterial treatment: | no |
| Impact resistance: | IK04 |
| Diameter: | 106.0 mm |
Features
Bridging switch
No
With signal unit
No
Number of switching zones
450.0
Response brightness
20 to 2000 lx
Max. inrush current
165 A
Max. presence range
32.0 m²
HAB
PD4, 1 channel, ceiling installation
Manufacturer
HAN
92149
GTIN
4007529921492
Dimming function with dimming insert
No
Alarm function
No
Response sensitivity adjustable
Yes
Response brightness adjustable
Yes
Antibacterial treatment
No
Version
Motion detector
Surface finish
Frosted
Diameter
106.0 mm
Detection field diameter on floor
24m
Color
Remote controllable
Yes
Frequency
50 to 60 Hz
Suitable for C-load
No
Suitable for ceiling mounting
Yes
Suitable for wall mounting
No
Suitable for wireless transmission
No
HVAC control
No
Halogen free
Yes
Height
90.0 mm
Max. duty cycle
30 min
Max. range frontal
8m
Max. range to one side
12m
Max. switching capacity
2300W
Min. duty cycle
15s
With DALI interface
No
With remote
No
Mounting type
Other
Extension input
No
Nominal voltage
240V
Surface
Untreated
Optimal mounting height
2.5m
RAL number (similar)
9010.0
Impact resistance
IK04
IP protection)
IP23
Sensor type
Passive infrared
Voltage type
AC
Teach function for response brightness
Yes
Temperature
-25 to 50 °C
Animal corridor
No
Transparent
No
Staircase monitoring
Yes
Creep protection/rear field monitoring
Yes
Networkable
No
Material
Plastic
Material quality
Other
