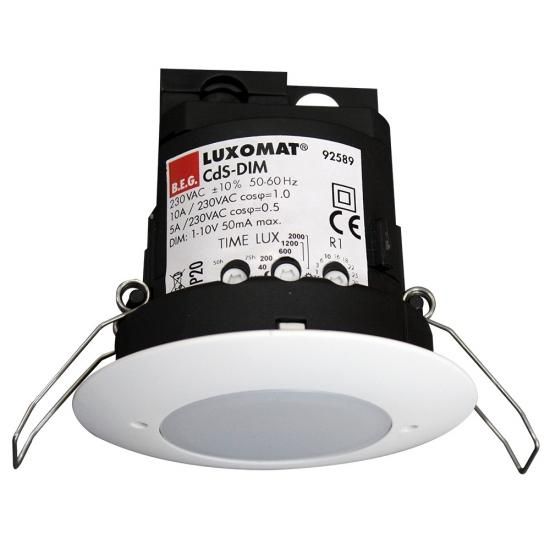

Remote-controlled twilight switch with a 1-10 V interface, dimming the lighting to the desired brightness value, reading the current light value or setting the delay time via optional infrared remote control, for group operation of up to 50 electronic ballasts, constant light control, dynamic switch-on delay, relay with tungsten pre-contact, optimized for LED loads, avoiding standby losses of the lighting system according to EnEV DIN V 18599-4
| Property | Value |
| Suitable for protection class (IP): | IP20 |
| Nominal voltage: | 240 V |
| Mounting type: | other |
| Color: | white |
| RAL number (similar): | 9010.0 |
| Switch-on brightness: | 10 to 2000 lx |
| Operating temperature: | -25 to 50 °C |
| Max. switching capacity: | 2300 W |
| Max. Switching current (ohmic load): | 10 A |
| Contacts: | 1 make contact |
| Material: | plastic |
| Material quality: | other |
| Halogen-free: | yes |
| Surface: | untreated |
| Surface finish: | matt |
| Transparent: | no |
Features
HAB
CDS-DIM-1C-DE white
Manufacturer
HAN
92589
GTIN
4007529925896
Surface finish
Frosted
Operating temperatur
-25 to 50 °C
Color
Suitable for protection class (IP)
IP20
Halogen free
Yes
Max. switching capacity
2300W
Mounting type
Other
Nominal voltage
240V
Surface
Untreated
RAL number (similar)
9010.0
Transparent
No
Material
Plastic
Material quality
Other
