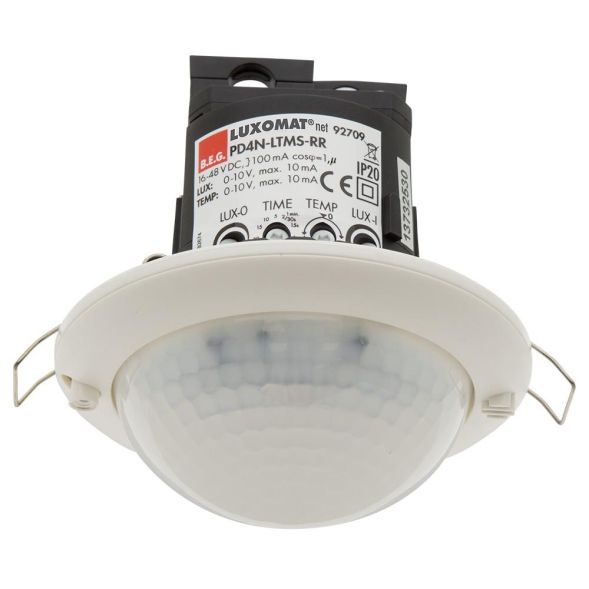

BEG 92709 PD4N-LTMS-RR-DE Reed relay Luxomat presence detector

Description

Features

Reviews

Multi-sensor for detecting presence, temperature and brightness values

For integration into a proprietary bus system

Output of the current light and temperature value as analog voltage

Output of motion detection via switching contact

Fine adjustment of the output value for light measurement and temperature via potentiometer on the device

Other functions can be set via optional remote control

Property	Value
Height:	103.0 mm
Version:	Presence detector
Color:	white
Nominal voltage:	48 V
RAL number (similar):	9010.0
Material:	Plastic
Mounting type:	other
Protection class (IP):	IP20
Voltage type:	DC
Max. Range to one side:	12 m
Suitable for wall mounting:	no
Min. duty cycle:	1 s
Max. duty cycle:	60 min
Creep-by protection/rear field monitoring:	yes
Adjustable response brightness:	no
Max. presence range:	32.0 m²
Max. Frontal range:	8 m
Sensor type:	passive infrared
Optimal mounting height:	2.5 m
Surface finish:	matt
Surface:	untreated
Material quality:	other
Detection field diameter on floor:	24 m
Number of switching zones:	450.0
Halogen-free:	yes
HVAC control:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Suitable for ceiling mounting:	yes
Antibacterial treatment:	no
Impact resistance:	IK04
Diameter:	98.0 mm
