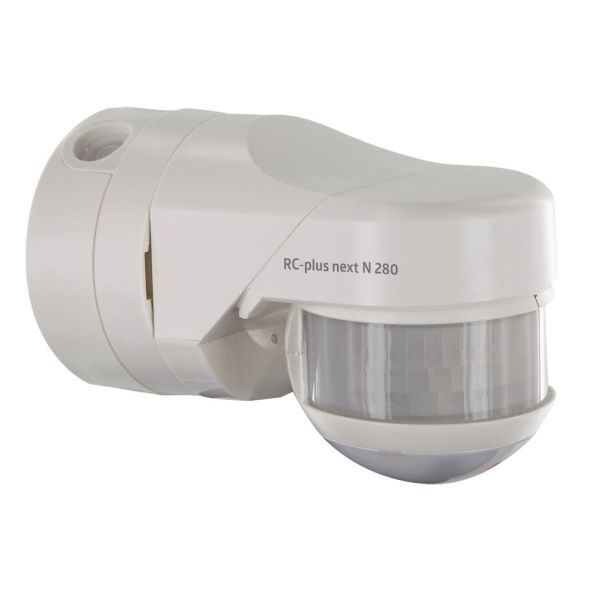

Motion detector with 280 degree detection range and creep protection, mechanical range adjustment, different follow-up times depending on the direction of movement, uninterrupted parallel connection detection of several detectors, manual switching possible via button, movable ball head, immediate commissioning with the factory settings possible, additional functions adjustable via optional remote control, switching in zero crossing, base compatible with RC-plus (next) and Vario, special base for outside corner mounting included!, easy installation thanks to plug-in base, wall, ceiling, corner mounting, factory setting 3 min and 20 lux
| Property | Value |
| Depth: | 121.0 mm |
| Width: | 71.0 mm |
| Height: | 85.0 mm |
| Version: | motion detector |
| Color: | white |
| Nominal voltage: | 230 V |
| RAL number (similar): | 9010.0 |
| Material: | plastic |
| Mounting type: | surface-mounted |
| Response brightness: | 2 to 500 lx |
| Protection class (IP): | IP54 |
| Max. switching capacity: | 3000 W |
| Voltage type: | AC |
| Max. range to one side: | 20 m |
| Suitable for wall mounting: | yes |
| Min. duty cycle: | 15 s |
| Max. Duty cycle: | 16 min |
| Creep-under protection/rear field monitoring: | yes |
| Temperature: | -25 to 50 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. presence area: | 39.0 m² |
| Max. frontal range: | 6 m |
| Max. Inrush current: | 165 A |
| Sensor type: | passive infrared |
| Optimal mounting height: | 2.5 m |
| Surface finish: | matt |
| Surface: | untreated |
| Material quality: | other |
| Detection field diameter on floor: | 40 m |
| Number of switching zones: | 970.0 |
| Frequency: | 50 to 60 Hz |
| Sensor swivel range, vertical: | -20 to 20 ° |
| Sensor swivel range, horizontal: | -45 to 45 ° |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | no |
| Animal corridor: | yes |
| Networkable: | no |
| Staircase monitoring: | no |
| Bypass switch: | no |
| Suitable for wireless transmission: | no |
| Remote control: | yes |
| With signal unit: | no |
| Alarm function: | yes |
| Teach function for response brightness: | yes |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | no |
| With DALI interface: | no |
| Extension input: | no |
| Suitable for ceiling mounting: | yes |
| Antibacterial treatment: | no |
| Impact resistance: | IK03 |
Features
Bridging switch
No
With signal unit
No
Number of switching zones
970.0
Response brightness
2 to 500 lux
Max. inrush current
165 A
Max. presence range
39.0 m²
HAB
RC-plus next N 280 white
Manufacturer
HAN
93341
GTIN
4007529933419
Dimming function with dimming insert
No
Alarm function
Yes
Response sensitivity adjustable
Yes
Response brightness adjustable
Yes
Antibacterial treatment
No
Version
Motion detector
Surface finish
Frosted
Width
71.0 mm
Detection field diameter on floor
40m
Color
Remote controllable
Yes
Frequency
50 to 60 Hz
Suitable for C-load
No
Suitable for ceiling mounting
Yes
Suitable for wall mounting
Yes
Suitable for wireless transmission
No
HVAC control
No
Halogen free
Yes
Height
85.0 mm
Constant light control
No
Max. duty cycle
16 min
Max. range frontal
6m
Max. range to one side
20m
Max. switching capacity
3000W
Min. duty cycle
15s
With DALI interface
No
With remote
No
Mounting type
Surface-mounted
Extension input
No
Nominal voltage
230V
Surface
Untreated
Optimal mounting height
2.5m
RAL number (similar)
9010.0
Impact resistance
IK03
IP protection)
IP54
Sensor type
Passive infrared
Voltage type
AC
Teach function for response brightness
Yes
Temperature
-25 to 50 °C
Depth
121.0 mm
Animal corridor
Yes
Transparent
No
Staircase monitoring
No
Creep protection/rear field monitoring
Yes
Networkable
No
Material
Plastic
Material quality
Other
