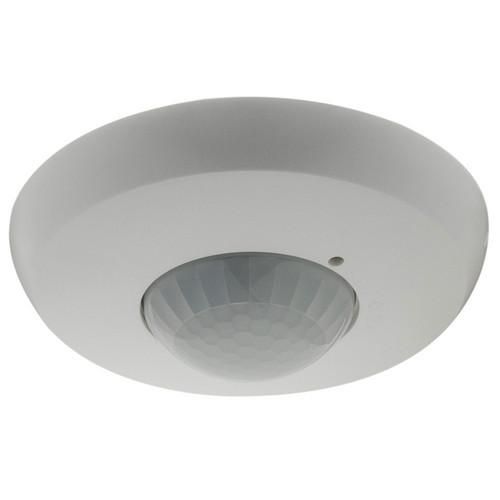

DALI-2 multi-sensor (input device), DALI-2 certified product, supply voltage via DALI bus, separate and powerful localization LED for quick and safe commissioning, DALI multi-master technology in accordance with IEC 62386 Part 103, instance 0 provides information regarding room occupancy and motion detection in accordance with IEC 62386 Part 303 on the DALI bus, instance 1 provides LUX values in accordance with IEC 62386 Part 304 on the DALI bus, parameterization is possible via a required multi-master application controller from any manufacturer. This controller must support IEC 62386 Parts 101/103/303/304., mixed light measurement using internal and external light sensors, detection range can be restricted by cover slats, individual sensitivity adjustment of the PIR sensor, status LEDs can be activated/deactivated
| Property | Value |
| Number of channels: | 1 |
| Optimal installation height: | 2.5 m |
| Color: | white |
| Version: | other |
| Installation type: | flush-mounted |
| KNX bus system: | no |
| Max. range to one side: | 5 m |
| Max. range frontal: | 6 m |
| Min. Duty cycle: | 1 s |
| Detection field diameter on floor: | 10 m |
| Response brightness adjustable: | no |
| Teach function for response brightness: | no |
| Self-learning switch-off delay: | no |
| Bus system radio bus: | no |
| Bus system LON: | no |
| Bus system Powernet: | no |
| Other bus systems: | other |
| Material: | plastic |
| Material quality: | other |
| Surface: | other |
| Surface finish: | matt |
| RAL number (similar): | 9010.0 |
| With bus connection: | yes |
| Extension input: | no |
| Crawl-under protection/rear field monitoring: | yes |
| Animal corridor: | no |
| Staircase monitoring: | yes |
| Transparent: | no |
| Bus system KNX radio: | no |
| Bidirectional radio: | no |
| Operating mode switch: | no |
