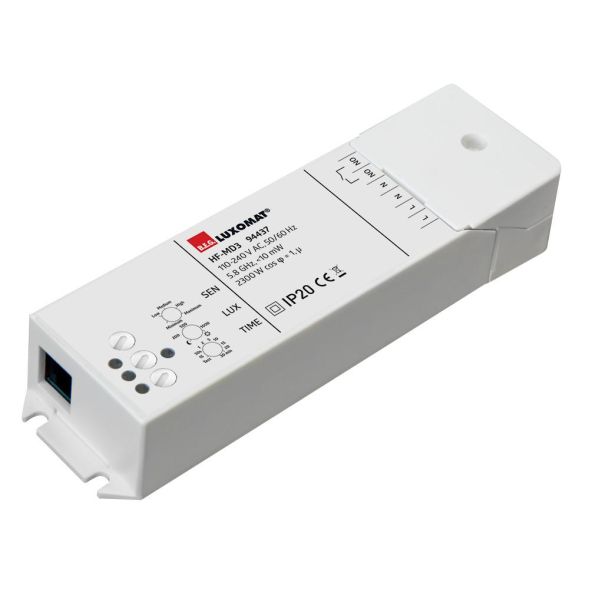

High-frequency presence detector for indoor use
Light sensor integrated in the housing
Adjustable via potentiometer on the device
Can be expanded with an external light sensor with integrated IR receiver for remote control of the detector
Temperature-independent detection
Detection through glass, wood and lightweight walls
| Property | Value |
| Depth: | 120.0 mm |
| Width: | 40.0 mm |
| Height: | 26.0 mm |
| Version: | Presence detector |
| Color: | white |
| Nominal voltage: | 240 V |
| RAL number (similar): | 9010.0 |
| Material: | Plastic |
| Protection class (IP): | IP20 |
| Max. Switching capacity: | 2300 W |
| Voltage type: | AC |
| Max. range to one side: | 3.5 m |
| Suitable for wall mounting: | no |
| Min. duty cycle: | 15 s |
| Max. duty cycle: | 30 min |
| Creep-by protection/rear field monitoring: | yes |
| Temperature: | -15 to 50 °C |
| Adjustable response brightness: | no |
| Max. Frontal range: | 7 m |
| Sensor type: | high frequency |
| Optimal mounting height: | 2.5 m |
| Surface finish: | matt |
| Surface: | untreated |
| Material quality: | other |
| Detection field diameter on floor: | 14 m |
| Number of switching zones: | 38.0 |
| Frequency: | 50 to 60 Hz |
| Halogen-free: | yes |
| HVAC control: | no |
| Animal corridor: | no |
| Networkable: | no |
| Staircase monitoring: | yes |
| Bypass switch: | no |
| Suitable for wireless transmission: | no |
| Remote controllable: | yes |
| With signal unit: | no |
| Alarm function: | no |
| Teach function for response brightness: | yes |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | no |
| With DALI interface: | no |
| Extension input: | no |
| Suitable for ceiling mounting: | yes |
| Antibacterial treatment: | no |
Features
Bridging switch
No
With signal unit
No
Number of switching zones
38.0
HAB
HF-MD3
Manufacturer
HAN
94437
GTIN
4007529944378
Dimming function with dimming insert
No
Alarm function
No
Response brightness adjustable
No
Antibacterial treatment
No
Version
Presence detector
Surface finish
Frosted
Width
40.0 mm
Detection field diameter on floor
14m
Color
Remote controllable
Yes
Frequency
50 to 60 Hz
Suitable for C-load
No
Suitable for ceiling mounting
Yes
Suitable for wall mounting
No
Suitable for wireless transmission
No
HVAC control
No
Halogen free
Yes
Height
26.0 mm
Max. duty cycle
30 min
Max. range frontal
7m
Max. range to one side
3.5m
Max. switching capacity
2300W
Min. duty cycle
15s
With DALI interface
No
With remote
No
Extension input
No
Nominal voltage
240V
Surface
Untreated
Optimal mounting height
2.5m
RAL number (similar)
9010.0
IP protection)
IP20
Sensor type
High frequency
Voltage type
AC
Teach function for response brightness
Yes
Temperature
-15 to 50 °C
Depth
120.0 mm
Animal corridor
No
Transparent
No
Staircase monitoring
Yes
Creep protection/rear field monitoring
Yes
Networkable
No
Material
Plastic
Material quality
Other
