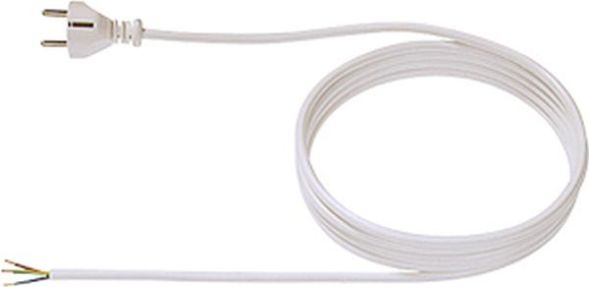

Cable SUPPLY CABLES/CONNECTION CABLES Power cable 10A/ 250V~ 3 m H03VV-F 3G 0.75 mm² white CEE 7/7 protective contact plug with double protective contact system centrally injected 30mm stripped with wire end ferrules individually packed
| Property | Value |
| Sheath color: | white |
| Length: | 3 m |
| Connection 1: | SCHUKO plug, straight |
| Connection 2: | Wire end ferrule |
| Rated current: | 10 A |
| Rated voltage: | 230 to 250 V |
| Protection class (IP): | IP20 |
| Sheath material: | Polyvinyl chloride (PVC) |
| Number of wires: | 3 |
| Conductor nominal cross-section: | 0.75 mm² |
| Spiral cable: | no |
| With cord switch: | no |
| Temperature resistance: | 70 °C |
| Outer diameter approx.: | 7 mm |
| Oil-resistant according to EN 60811-404: | no |
| Connector system system-bound: | no |
| Frequency: | 50 to 60 Hz |
Features
Sheath material
Polyvinyl chloride (PVC)
Temperature resistance
70 °C
Outer diameter approx.
7 mm
Connection 1
SCHUKO plug, straight
Oil-resistant according to EN 60811-404
No
Conductor nominal cross section
0.75 mm²
Spiral cable
No
Connection 2
Wire end ferrule
With cord switch
No
Connector system system-bound
No
Manufacturer
HAN
312.275
GTIN
4016514002580
Wire number
3
Frequency
50 to 60 Hz
Length
3m
Coat color
White
Nominal voltage
230 to 250 V
Rated current
10A
IP protection)
IP20
