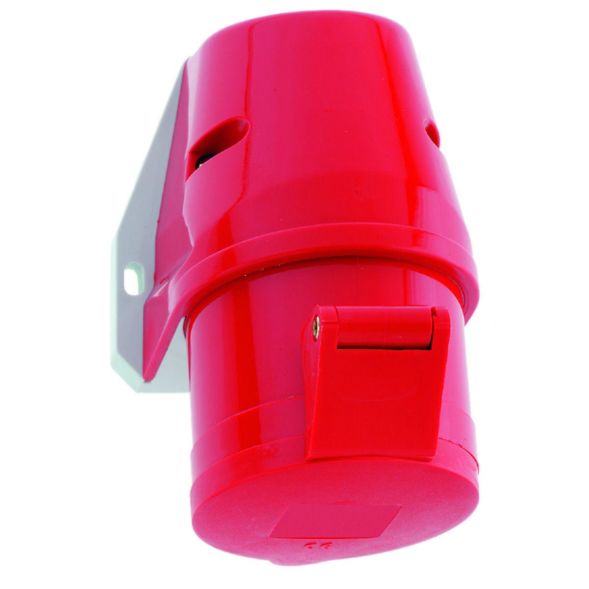

Wall socket Quick-Connect 16A 5p (3P+N+PE) 400V (200/346 to 240/415V) 6h IP44, Frequency: 50 and 60Hz, Technical identification colour: red RAL 3000, Housing size: 90x87 mm (HxW), Contact carrier/contacts: The contact carrier is made of polyamide, The contacts are bare brass, Maximum conductor cross-section: 4.0 mm², Housing material: Polyamide, Connection technology: screwless spring clamp technology as cage clamp with Kontex contact, Cable entry: 1xM25 at the top Device colour: Housing upper part red RAL 3000, collar red RAL 3000, hinged lid red RAL 3000, housing lower part grey RAL 7035 Device height: 131 mm, Device width: 87 mm, Device depth: 99 mm, Other technical Features: The cable entry is open at the top and closed at the bottom
| Property | Value |
| IEC current: | 16 A |
| Number of poles: | 5 |
| Protection class (IP): | IP44 |
| Identification colour: | red |
| Connection technology: | screwless terminal |
| Design: | Surface-mounted |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Time setting: | 6 h |
| Material: | Plastic |
| Mounting type: | External mounting |
| Military version: | no |
| Insulated installation: | yes |
| RAL number: | 3000 |
| Cable entry: | Screw connection |
Features
HAB
112001 16A 5p 400V 6h IP44 Quick Connect
Manufacturer
HAN
112001
GTIN
4024941014625
Connection technology
Screwless terminal
Version
Surface-mounted
Mounting type
External fastening
IEC current
16A
Insulated installation
Yes
Cable entry
Screw connection
Identification color
Red
Military version
No
Number of poles
5
RAL number
3000
IP protection)
IP44
Voltage according to EN 60309-2
400 V (50+60 Hz) red
Time position
6 hours
Material
Plastic
