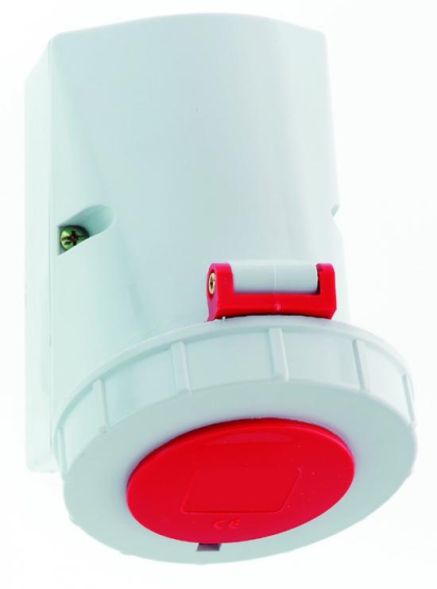

Wall socket 32A 5p (3P+N+PE) 400V (200/346 to 240/415V) 6h IP67, Frequency: 50 and 60Hz, Technical identification color: red RAL 3000, Housing size: 126x83 mm (HxW), Contact carrier/contacts: The contact carrier is made of polyamide, The contacts are bare brass, Maximum conductor cross-section: 10.0 mm², Housing material: Polyamide, Connection technology: Screw terminals as socket terminals, Cable entry: 1xM25 top, 2xM25 bottom Device color: Hinged lid red RAL 3000, Bayonet ring gray RAL 7035, Housing base gray RAL 7035, Housing top gray RAL 7035 Device height: 161 mm, Device width: 101 mm, Device depth: 141 mm, Other technical Features: The cable entry is open once at the top and closed twice at the bottom, The housing base can be rotated by 180°, There are 4 mounting holes in the housing base for breaking out
| Property | Value |
| IEC current: | 32 A |
| Number of poles: | 5 |
| Protection class (IP): | IP67 |
| Identification colour: | red |
| Connection technology: | screw terminal |
| Design: | surface-mounted |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Time setting: | 6 h |
| Material: | plastic |
| Mounting type: | internal mounting |
| Military version: | no |
| Insulated installation: | yes |
| RAL number: | 3000 |
| Cable entry: | screw connection |
