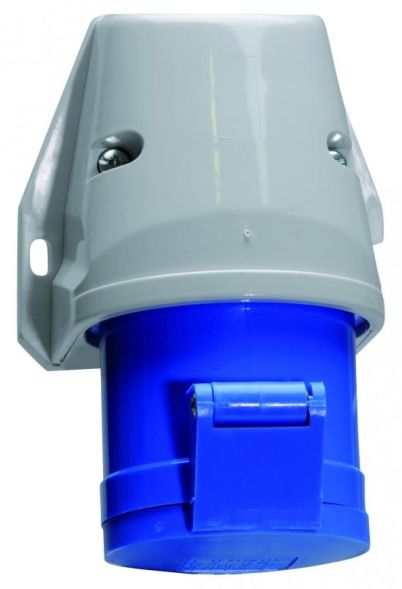

Wall socket, 16A 3p (2P+PE) 230V (200 - 250V~) 6h IP44, Frequency: 50/60Hz, Technical identification colour: blue RAL 5015, Housing size: 90x72 mm (HxW), Contact carrier/contacts: The contact carrier is made of polyamide, The contacts are bare brass, Maximum conductor cross-section: 4.0 mm², Housing material: Polyamide, Connection technology: with screw terminal, Cable entry: 1xM20 at the top, Device colour: Collar blue RAL 5015, Hinged lid blue RAL 5015, Housing base grey RAL 7035, Housing top grey RAL 7035, Device height: 130 mm, Device width: 72 mm, Device depth: 86 mm, Other technical properties: The cable entry is open at the top and closed at the bottom.
| Property | Value |
| IEC current: | 16 A |
| Number of poles: | 3 |
| Protection class (IP): | IP44 |
| Identification colour: | blue |
| Connection technology: | screw terminal |
| Design: | surface-mounted |
| Voltage according to EN 60309-2: | 230 V (50+60 Hz) blue |
| Time setting: | 6 h |
| Material: | plastic |
| Mounting type: | External mounting |
| Military version: | no |
| Insulated installation: | yes |
| RAL number: | 5015 |
| Cable entry: | Screw connection |
Features
HAB
11765 16A 3p 230V 6h IP44 GT
Manufacturer
HAN
11765
GTIN
4024941117654
Connection technology
Screw terminal
Version
Surface-mounted
Mounting type
External fastening
IEC current
16A
Insulated installation
Yes
Cable entry
Screw connection
Identification color
Blue
Military version
No
Number of poles
3
RAL number
5015
IP protection)
IP44
Voltage according to EN 60309-2
230 V (50+60 Hz) blue
Time position
6 hours
Material
Plastic
