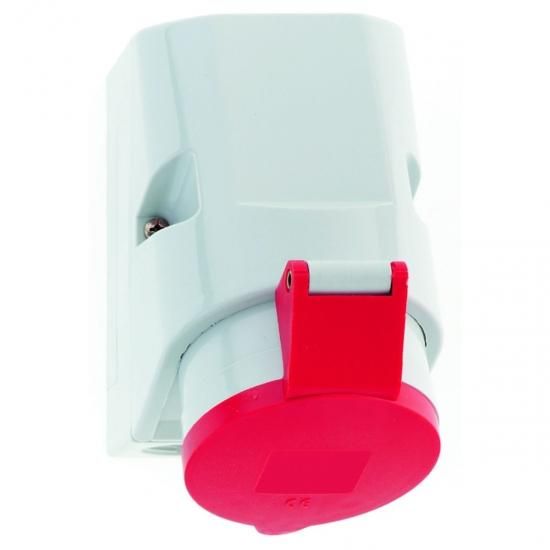

Wall socket Quick-Connect 16A 5p (3P+N+PE) 400V (200/346 to 240/415V) 6h IP44, Frequency: 50 and 60Hz, Technical identification color: red RAL 3000, Housing size: 126x83 mm (HxW), Contact carrier/contacts: The contact carrier is made of polyamide, The contacts are bare brass, Maximum conductor cross-section: 4.0 mm², Housing material: Polyamide, Connection technology: screwless spring clamp technology as cage clamp with Kontex contact, Cable entry: 1xM25 top, 2xM25 bottom Device color: Hinged lid red RAL 3000, Housing base gray RAL 7035, Housing top gray RAL 7035, Collar gray RAL 7035 Device height: 154 mm, Device width: 83 mm, Device depth: 130 mm, Other technical features: The cable entry is open once at the top and closed twice at the bottom, The housing base can be rotated by 180°, There are 4 mounting holes in the housing base for breaking out
| Property | Value |
| IEC current: | 16 A |
| Number of poles: | 5 |
| Protection class (IP): | IP44 |
| Identification colour: | red |
| Connection technology: | screwless terminal |
| Design: | Surface-mounted |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Time setting: | 6 h |
| Material: | Plastic |
| Mounting type: | internal mounting |
| Military version: | no |
| Insulated installation: | yes |
| RAL number: | 3000 |
| Cable entry: | screw connection |
