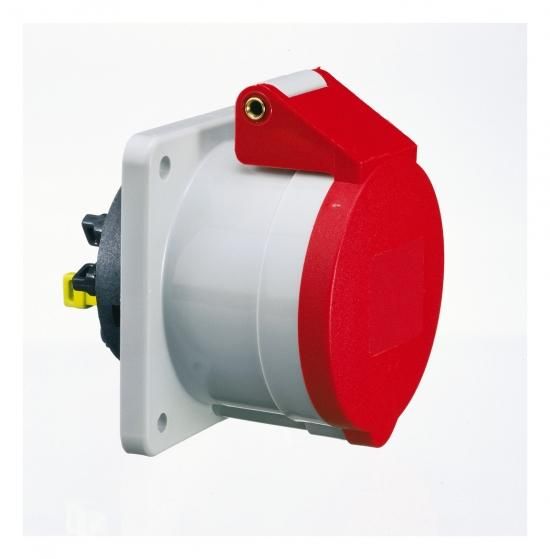

Quick-Connect straight panel socket, 32A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44, Frequency: 50/60Hz, Technical identification color: red RAL 3000, Contact carrier/contacts: The contact carrier is made of polyamide, The contacts are bare brass, Maximum conductor cross-section: 10.0 mm², Housing material: Polyamide, Connection technology: screwless spring clamp technology as cage clamp with Kontex contact, Cable entry: other, Device color: hinged cover red RAL 3000, Housing gray RAL 7035, Device height: 98 mm, Device width: 75 mm, Device depth: 109 mm, Flange dimension vertical: 75 mm, Flange dimension horizontal: 75 mm, Drill hole spacing vertical: 60 mm, Drill hole spacing horizontal: 60 mm
| Property | Value |
| IEC current: | 32 A |
| Number of poles: | 5 |
| Connection technology: | screwless terminal |
| Plug direction: | straight |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Time setting: | 6 h |
| Identification color: | red |
| Protection class (IP): | IP44 |
| Material: | plastic |
| Military version: | no |
| Hole spacing horizontal: | 60 mm |
| Hole spacing vertical: | 60 mm |
| Flange dimension vertical: | 75 mm |
| RAL number: | 3000 |
Features
HAB
132002 5p 400V 6h IP44 75x75/60x60
Manufacturer
HAN
132002
GTIN
4024941019248
Connection technology
Screwless terminal
IEC current
32 A
Identification color
Red
Military version
No
Number of poles
5
RAL number
3000
IP protection)
IP44
Voltage according to EN 60309-2
400 V (50+60 Hz) red
Plug direction
Straight
Time position
6 hours
Material
Plastic
