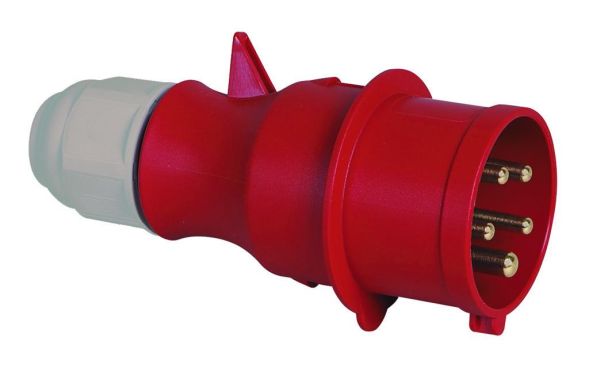

TLS plug with MULTI-GRIP screw connection, 32A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44, Frequency: 50/60Hz, Technical identification color: red RAL 3000, Contact carrier/contacts: The contact carrier is made of polyamide, The contacts are bare brass, Maximum conductor cross-section: 6.0 mm², Housing material: Polyamide, Connection technology: with screw terminal, Cable entry: Screw connection, Device color: Housing red RAL 3000, Cable screw connection gray RAL 7035, Device height: 175 mm, Device width: 80 mm, Device depth: 89 mm, Other technical properties: The housing is one-piece, With Multi-Grip cable screw connection and integrated strain relief, For cables with a min. diameter of 11mm to max. diameter of 23mm
| Property | Value |
| IEC current: | 32 A |
| Number of poles: | 5 |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Identification colour: | red |
| Phase inverter: | no |
| Protection class (IP): | IP44 |
| Connection technology: | screw terminal |
| Cable entry: | screw connection |
| Plug direction: | straight |
| Time setting: | 6 h |
| Material: | plastic |
| Military version: | no |
| RAL number: | 3000 |
Features
Phase inverter
No
HAB
204-TLS 32A 5p 400V 6h IP44 MULTI-GRIP
Manufacturer
HAN
204-TLS
GTIN
4024941192293
Connection technology
Screw terminal
IEC current
32 A
Cable entry
Screw connection
Identification color
Red
Military version
No
Number of poles
5
RAL number
3000
IP protection)
IP44
Voltage according to EN 60309-2
400 V (50+60 Hz) red
Plug direction
Straight
Time position
6 hours
Material
Plastic
