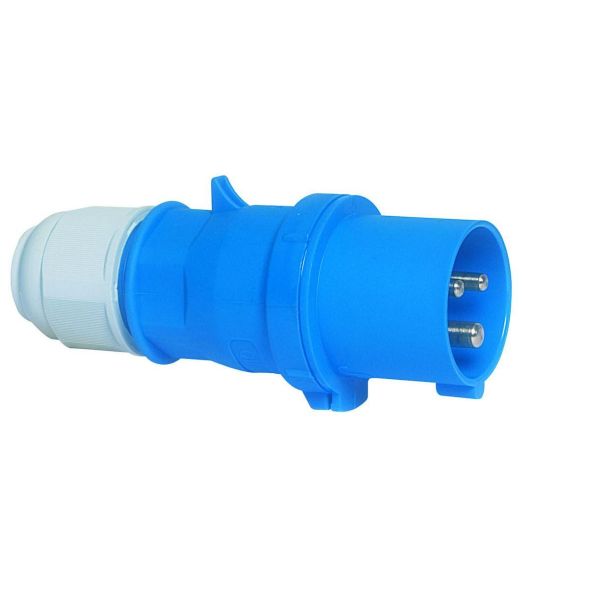

QUICK-CONNECT plug with MULTI-GRIP screw connection 32A 3p (2P+PE) 230V (200 to 250V) 6h IP44, Frequency: 50 and 60Hz, Technical identification colour: blue RAL 5015, Contact carrier/contacts: The contact carrier is made of polyamide, The contacts are bare brass, Maximum conductor cross-section: 6.0 mm², Housing material: Polyamide, Connection technology: screwless spring clamp technology with socket spring terminals, Cable entry: Screw connection Device colour: Collar blue RAL 5015, Cable screw connection grey RAL 7035, Housing cover blue RAL 5015 Device height: 176 mm, Device width: 79 mm, Device depth: 83 mm, Other technical properties: With Multi-Grip cable screw connection and integrated strain relief, The connection of the housing parts is screwless and is made by a snap lock. locked. Can be opened using a screwdriver. For cables with a minimum diameter of 11mm to a maximum diameter of 23mm
| Property | Value |
| IEC current: | 32 A |
| Number of poles: | 3 |
| Voltage according to EN 60309-2: | 230 V (50+60 Hz) blue |
| Identification colour: | blue |
| Phase inverter: | no |
| Protection class (IP): | IP44 |
| Connection technology: | screwless terminal |
| Cable entry: | screw connection |
| Plug direction: | straight |
| Time setting: | 6 h |
| Material: | plastic |
| Military version: | no |
| RAL number: | 5015 |
