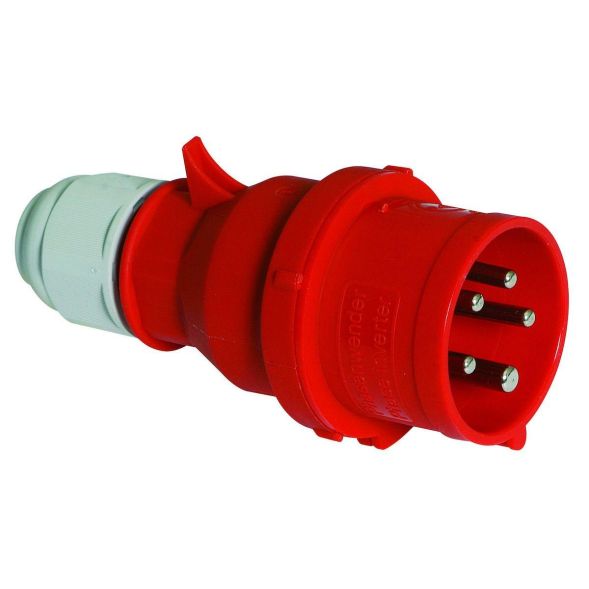

Phase inverter QUICK-CONNECT with MULTI-GRIP screw connection, 16A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44, Frequency: 50/60Hz, Technical identification colour: red RAL 3000, Contact carrier/contacts: The contact carrier is made of polyamide, The contacts are nickel-plated brass, Maximum conductor cross-section: 2.5 mm², Housing material: Polyamide, Connection technology: screwless spring clamp technology with socket spring terminals, Cable entry: Screw connection, Device colour: Collar red RAL 3000, Cable gland dark grey RAL 7012, Housing cover dgu RAL 7012, Device height: 147 mm, Device width: 71 mm, Device depth: 75 mm, Other technical properties: With Multi-Grip cable gland and integrated Strain relief, The connection of the housing parts is screwless and is locked by a snap lock. It can be opened using a screwdriver, For cables with a minimum diameter of 8mm to a maximum diameter of 18mm
| Property | Value |
| IEC current: | 16 A |
| Number of poles: | 5 |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Identification colour: | red |
| Phase inverter: | yes |
| Protection class (IP): | IP44 |
| Connection technology: | screwless terminal |
| Cable entry: | screw connection |
| Plug direction: | straight |
| Time setting: | 6 h |
| Material: | plastic |
| Military version: | no |
| RAL number: | 3000 |
