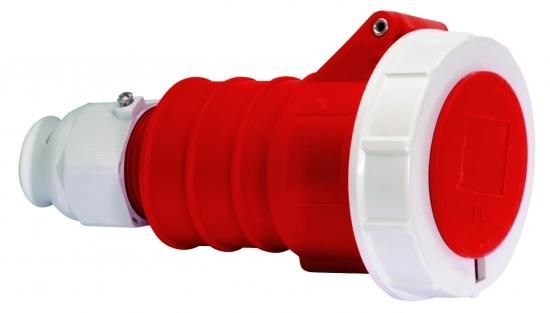

QUICK-CONNECT TE coupling, 32A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67, Frequency: 50/60Hz, Technical identification color: red RAL 3000, Contact carrier/contacts: The contact carrier is made of highly heat-resistant material, The contacts are nickel-plated brass, Maximum conductor cross-section: 6.0 mm², Housing material: Polyamide, Connection technology: screwless spring clamp technology as cage clamp with Kontex contact, Cable entry: Screw connection, Device color: Hinged cover red RAL 3000, Housing red RAL 3000, Bayonet ring gray RAL 7035, Cable gland gray RAL 7035, Device height: 196 mm, Device width: 101.5 mm, Device depth: 106 mm, Other technical properties: For cable with a min. diameter of 13mm to max. diameter of 27mm, with Multi-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
| Property | Value |
| IEC current: | 32 A |
| Number of poles: | 5 |
| Connection technology: | screwless terminal |
| Plug direction: | straight |
| Cable entry: | screw connection |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Time setting: | 6 h |
| Identification color: | red |
| Protection class (IP): | IP67 |
| Material: | Plastic |
| Military version: | no |
| RAL number: | 3000 |
