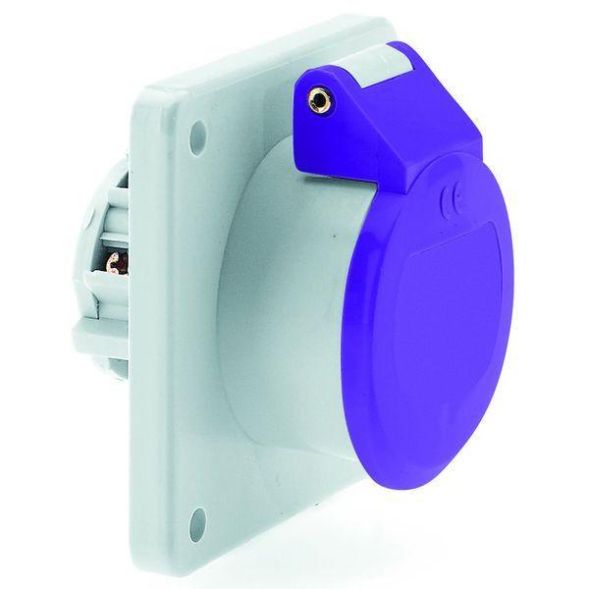

Low voltage panel socket straight 16A 2p (2P) 24V (20 to 25V) no auxiliary lug or groove IP44 Frequency: 50/60Hz Technical identification colour: violet RAL 4005 Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass Maximum conductor cross-section: 10.0 mm² Housing material: polyamide Connection technology: with screw terminal Cable entry: other Device colour: housing grey RAL 7035, hinged cover violet RAL 4005 Device height: 67 mm, device width: 55 mm, device depth: 59 mm Flange dimension vertical: 55 mm, flange dimension horizontal: 55 mm Hole spacing vertical: 45 mm, hole spacing horizontal: 45 mm
| Property | Value |
| IEC current: | 16 A |
| Number of poles: | 2 |
| Connection technology: | screw terminal |
| Plug direction: | straight |
| Voltage according to EN 60309-2: | other |
| Identification colour: | purple (violet) |
| Protection class (IP): | IP44 |
| Material: | plastic |
| Military version: | no |
| Drill hole spacing horizontal: | 45 mm |
| Hole spacing vertical: | 45 mm |
| Flange dimension horizontal: | 55 mm |
| Flange dimension vertical: | 55 mm |
| RAL number: | 4005 |
Features
HAB
16A 2p 24V no auxiliary nose or groove IP4
Manufacturer
HAN
430
GTIN
4024941004305
Connection technology
Screw terminal
IEC current
16A
Identification color
Purple violet)
Military version
No
Number of poles
2
RAL number
4005
IP protection)
IP44
Voltage according to EN 60309-2
Other
Plug direction
Straight
Material
Plastic
