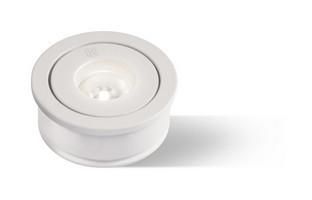

Dimmable, high-quality LED recessed ceiling spotlight, beam angle: 35°, equipped with high-quality LEDs from Osram, service life estimate L70 at Tc < 70°C: > 50,000h, including 1m connection cable with free wire ends
| Property | Value |
| Max. System power: | 3 W |
| Rated luminous flux according to IEC 62722-2-1: | 280 lm |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP20 |
| Outer diameter: | 43.5 mm |
| Light source: | LED not replaceable |
| Protection class: | III |
| With light source: | yes |
| Installation diameter: | 40 mm |
| Installation height/depth: | 26.5 mm |
| With control gear: | no |
| Suitable for recessed mounting: | yes |
| Height/depth: | 21 mm |
| With motion detector: | no |
| Suitable for wall mounting: | yes |
| Color temperature: | 5000 K |
| Nominal voltage: | 8 to 25 V |
| Beam angle: | medium beam 21-40° |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device voltage controlled |
| Luminaire with limited surface temperature 'D-mark': | no |
| Reflector: | without |
| Luminous flux: | 280 lm |
| Cover material: | transparent plastic |
| Covering of the luminaire with thermal insulation material possible: | no |
| Voltage type: | DC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | pivotable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for traverse mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for Cable system: | no |
| Surface: | painted |
| Brushed surface: | yes |
| Dimming depending on operating device: | yes |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated in device): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | Focus lens |
| Light emission: | direct |
| Energy efficiency class of the built-in light source: | A++, A+, A (LED) |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 2 |
| Connection type: | other |
| Luminaire luminous efficacy: | 93 lm/W |
| Suitable for computer workstations according to EN 12464-1: | no |
| Colour consistency (McAdam ellipse): | SDCM3 |
Features
Energy efficiency class of the permanently installed light source
A++, A+, A (LED)
HAB
Modena DC 8-25VDC 3W dl 5000K ws
Manufacturer
HAN
62514515
GTIN
4021553049168
Covering the luminaire with thermal insulation material possible
No
Connection type
Other
Type of wiring
Suitable for through wiring
Beam angle
Medium beam 21-40°
Outer diameter
43.5 mm
Rated luminous flux according to IEC 62722-2-1
280lm
Operating device
LED control gear voltage controlled
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
Yes
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation diameter
40 mm
Installation height/depth
26.5 mm
Color consistency (McAdam ellipse)
SDCM3
Color temperature
5000K
Color rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Suitable for wall mounting
Yes
Housing color
White
Height/Depth
21 mm
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
93lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
280lm
Light distributor
Focus lens
Light distribution
Symmetrical
Max. system performance
3W
With operating device
No
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
8 to 25 V
Surface
Painted
Brushed surface
Yes
Without dimming function
Yes
Number of poles
2
Reflector
Without
IP protection)
IP20
Protection class
III
Voltage type
DC
Adjustability
Swiveling
Cover material
Plastic transparent
Housing material
Aluminum
