Description
Cables for assembly
| Property | Value |
| Number of cores: | 5 |
| Conductor nominal cross-section: | 0.34 mm² |
| Sheath color: | white |
| Outer diameter approx.: | 5.4 mm |
| Conductor class: | Cl.5 = fine-wire |
| Stranding element: | no |
| Material of core insulation: | Polyvinyl chloride (PVC) |
| Core marking: | Color |
| Protective conductor: | no |
| Shield over stranding element: | without |
| Shield over stranding: | without |
| Support element: | without |
| Sheath material: | Polyvinyl chloride (PVC) |
| Torsion protection: | no |
| Halogen-free according to EN 60754-1/2: | no |
| Flame-retardant: | no |
| Low smoke according to EN 61034-2: | no |
| Cold-resistant according to EN 60811-504+505+506: | no |
| Oil resistant according to EN 60811-404: | no |
| Permissible external cable temperature during assembly/handling: | -20 to 70 °C |
| Permissible Cable external temperature after installation without vibration: | -40 to 70 °C |
| Nominal voltage U0: | 300 V |
| Nominal voltage U: | 300 V |
| AWG size: | 20 |
| Conductor nominal cross-section (AWG): | 0.5 kcmil |
| Specification of core insulation: | other |
| Specification of sheath material: | other |
| Shape: | round |
Features
Sheath material
Polyvinyl chloride (PVC)
Outer diameter approx.
5.4 mm
Oil-resistant according to EN 60811-404
No
Conductor nominal cross section
0.34 mm²
HAB

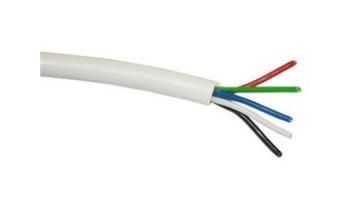

Special RGBW/RGBA white 4x0.34mm
Manufacturer
HAN
66100027
GTIN
4021553021188
AWG Size
20
Wire number
5
Shape
Around
Leader Class
Kl.5 = fine-stranded
Coat color
White
