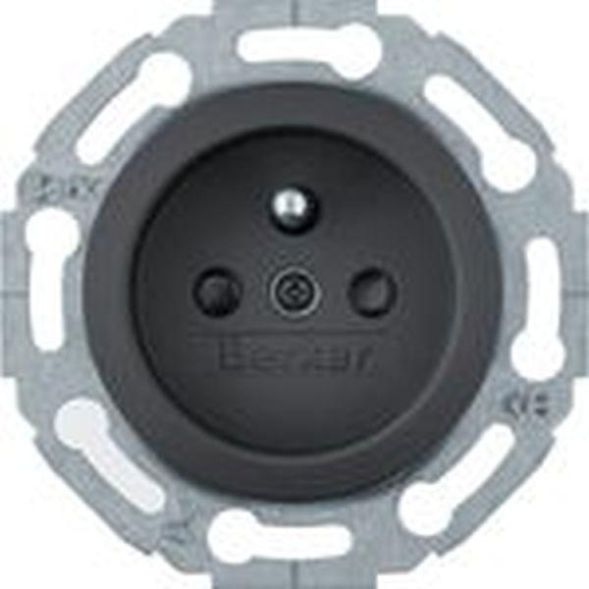

Socket with protective contact, 45° steps, variable installation position, raised BS and screw lift clamp.
| Property | Value |
| RAL number (similar): | 9005 |
| Number of units: | 1 |
| Color: | black |
| Suitable for protection class (IP): | IP20 |
| Nominal voltage: | 250 V |
| Nominal current: | 16 A |
| Lockable: | no |
| With increased contact protection: | yes |
| With hinged lid: | no |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | no |
| Frequency: | 50 to 60 Hz |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Surge protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | yes |
| Connection type: | Screw terminal |
| With Fine-wire fuse: | no |
| Mounting type: | claw fastening |
| Material: | plastic |
| Surface: | painted |
| Surface finish: | matt |
| Device width: | 71 mm |
| Device height: | 71 mm |
| Device depth: | 44.1 mm |
| Insulated installation: | yes |
| With loop-through function: | no |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | no |
| Impact resistance: | IK02 |
| Transparent: | no |
| Protective contact: | yes |
| Protective conductor contact round: | yes |
| Number of active contacts (round): | 2 |
| With signal lamp: | no |
| Number of phases: | 1 |
| Antibacterial Treatment: | no |
Features
Manufacturer
HAN
MAN0101117
GTIN
4011334540847
Lockable
No
Connection type
Screw terminal
Antibacterial treatment
No
Number of Units
1
Number of phases
1
Number of active contacts (approx.)
2
Surface finish
Frosted
Ejection mechanism
No
Mounting type
Claw attachment
Color
Residual current protection
No
Frequency
50 to 60 Hz
Suitable for protection class (IP)
IP20
Device width
71 mm
Device height
71 mm
Device depth
44.1 mm
Halogen free
Yes
Insulated installation
Yes
With loop-through function
No
With on/off switch
No
With micro fuse
No
With functional lighting
No
With hinged lid
No
With orientation lighting
No
With signal lamp
No
With built-in USB power supply
No
With increased contact protection
Yes
Mounting type
Flush-mounted
Nominal voltage
250V
Rated current
16A
Surface
Painted
RAL number (similar)
9005
Impact resistance
IK02
Protective contact
Yes
Protective conductor contact round
Yes
Special power supply
Without special power supply
Text field/label area
No
Transparent
No
Twisted central insert
Yes
Material
Plastic
Overvoltage protection
No
