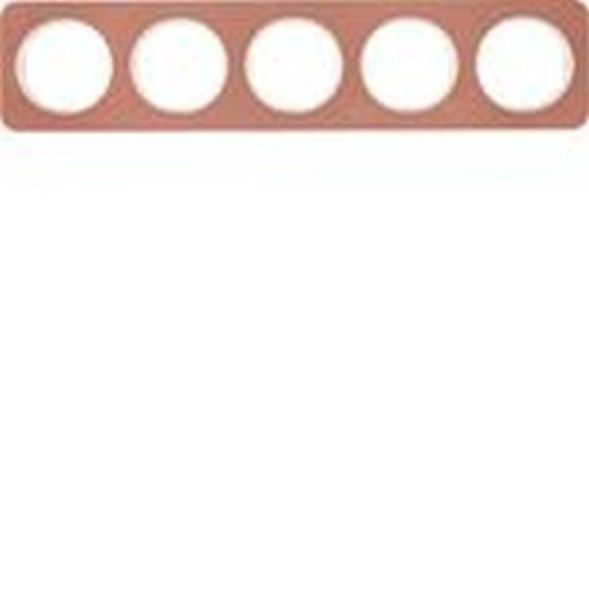

Frame 5-way R.1 copper/polar white
| Property | Value |
| Height: | 81.2 mm |
| Width: | 365.2 mm |
| Material: | Metal |
| Mounting direction: | horizontal and vertical |
| Number of units: | 5 |
| Color: | Copper |
| Protection class (IP): | IP20 |
| Suitable for built-in installation: | yes |
| Halogen-free: | yes |
| With hinged lid: | no |
| Text field/labeling area: | no |
| Depth: | 9.9 mm |
| Suitable for underfloor duct box: | no |
| Suitable for device installation duct: | yes |
| Material quality: | copper |
| Surface: | brushed |
| Surface finish: | matt |
| Number of units horizontal: | 5 |
| Number of units vertical: | 5 |
| Mounting type: | clamp fastening |
| Diameter of bore (opening): | 52 mm |
| Transparent: | no |
| Number of switch inserts: | 5 |
| With mounting frame: | no |
| Impact resistance: | IK02 |
Features
Manufacturer
HAN
MAN0106417
GTIN
4011334541370
Number of Units
5
Number of units horizontal
5
Number of units vertical
5
Number of switch inserts
5
Surface finish
Frosted
Mounting type
Clamp fastening
Width
365.2 mm
Diameter bore (opening)
52 mm
Color
Suitable for built-in installation
Yes
Suitable for device installation duct
Yes
Suitable for underfloor duct box
No
Halogen free
Yes
Height
81.2 mm
With hinged lid
No
With mounting frame
No
Mounting direction
Horizontal and vertical
Surface
Brushed
Impact resistance
IK02
IP protection)
IP20
Text field/label area
No
Depth
9.9 mm
Transparent
No
Material
Metal
Material quality
Copper
