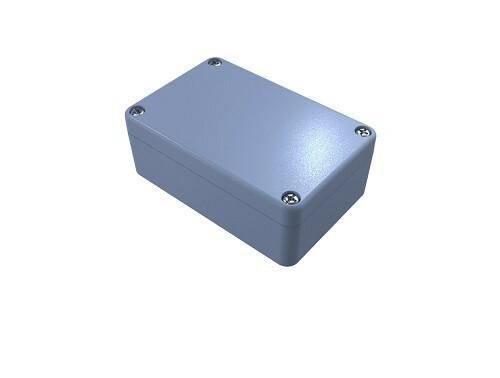

Empty housing made of aluminum with cULus label. Protection class IP66/IP67 according to DIN EN 60529. Corrosion and impact resistant thanks to high-quality powder coating. Grounding screws in the base and cover for holding protective conductors. Material: die-cast aluminum. Seal: foamed PUR seal. Cover screws: stainless steel, captive, combination Phillips head. Temperature range: -30°C to +80°C.
| Property | Value |
| Protection class (IP): | IP67 |
| Impact resistance: | IK09 |
| Protection class: | I |
| Width: | 64 mm |
| Housing material: | Aluminum |
| Weight: | 0.22 |
| Weight unit: | KG |
| Mounting type: | other |
| Height: | 36 mm |
| Depth: | 98 mm |
| RAL number: | 7001 |
| Surface: | powder-coated |
| Mounting option: | yes |
| Color: | gray |
| Type of cover: | lid |
| Type of door: | without |
| Material thickness of housing: | 3.5 mm |
| Material thickness of door/lid: | 3 mm |
| Cover design: | closed |
| Protection class (NEMA): | other |
Features
Manufacturer
HAN
1080004000
GTIN
4024337093463
Cultivation option
Yes
Type of cover
Lid
Type of door
Without
Cover design
Closed
Width
64 mm
Color
Weight
0,22
Weight unit
kg
Height
36 mm
Housing material thickness
3.5 mm
Material thickness door/lid
3 mm
Mounting type
Other
Surface
Powder coated
RAL number
7001
Impact resistance
IK09
IP protection)
IP67
Protection class (NEMA)
Other
Protection class
I
Depth
98 mm
Housing material
Aluminum
