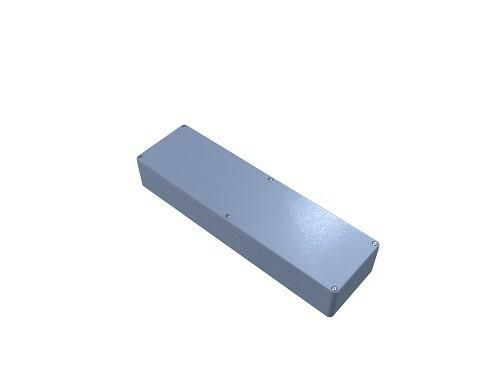

Empty housing for high mechanical load capacity. Protection class IP66/IP67 according to DIN EN 60529. Corrosion and impact resistant thanks to high-quality powder coating. Grounding screws in the base and cover for holding protective conductors. Fastening bars for holding and fastening built-in components (support rail, mounting plate, etc.). Material: die-cast aluminum. Seal: foamed PUR seal. Cover screws: stainless steel, captive, combination Phillips head. Temperature range: -30°C to +80°C.
| Property | Value |
| Protection class (IP): | IP67 |
| Impact resistance: | IK09 |
| Protection class: | I |
| Width: | 160 mm |
| Housing material: | Aluminum |
| Weight: | 4.31 |
| Weight unit: | KG |
| Commodity statistical number: | 85365011 |
| Mounting type: | other |
| Height: | 90 mm |
| Depth: | 560 mm |
| RAL number: | 7001 |
| Surface: | powder-coated |
| Mounting option: | yes |
| Color: | gray |
| Type of cover: | lid |
| Type of door: | without |
| Material thickness of housing: | 4 mm |
| Material thickness of door/lid: | 4 mm |
| Cover design: | closed |
| Protection class (NEMA): | other |
Features
Manufacturer
HAN
1330000000
GTIN
4024337001086
Cultivation option
Yes
Type of cover
Lid
Type of door
Without
Cover design
Closed
Width
160 mm
Color
Weight
4,31
Weight unit
kg
Height
90 mm
Housing material thickness
4 mm
Material thickness door/lid
4 mm
Mounting type
Other
Surface
Powder coated
RAL number
7001
Impact resistance
IK09
IP protection)
IP67
Protection class (NEMA)
Other
Protection class
I
Statistical commodity code
85365011
Depth
560 mm
Housing material
Aluminum
