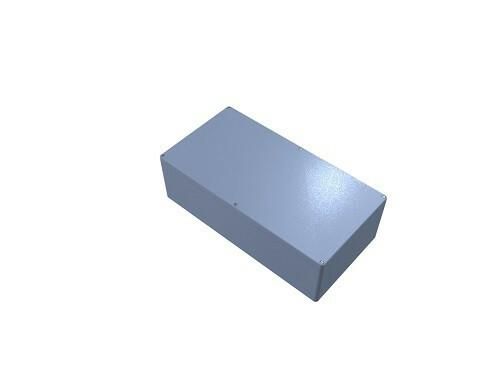

Empty housing for high mechanical load capacity. IP65 according to DIN EN 60529. Corrosion and impact resistant thanks to high-quality powder coating. Grounding screws in the base and cover for holding protective conductors. Fastening bars for holding and fastening built-in components (support rail, mounting plate, etc.). Material: die-cast aluminum. HF seal. Cover screws: stainless steel, captive, combination Phillips head. Temperature range: -30°C to +80°C.
| Property | Value |
| Protection class (IP): | IP65 |
| Impact resistance: | IK09 |
| Protection class: | I |
| Width: | 310 mm |
| Housing material: | Aluminum |
| Weight: | 10.84 |
| Weight unit: | KG |
| Commodity statistical number: | 85365011 |
| Mounting type: | other |
| Height: | 180 mm |
| Depth: | 600 mm |
| RAL number: | 7001 |
| Surface: | powder-coated |
| Mounting option: | yes |
| Color: | gray |
| Type of cover: | lid |
| Type of door: | without |
| Material thickness of housing: | 4 mm |
| Material thickness of door/lid: | 4 mm |
| Cover design: | closed |
| Protection class (NEMA): | other |
Features
Manufacturer
HAN
1480008000
GTIN
4024337064982
Cultivation option
Yes
Type of cover
Lid
Type of door
Without
Cover design
Closed
Width
310 mm
Color
Weight
10,84
Weight unit
kg
Height
180 mm
Housing material thickness
4 mm
Material thickness door/lid
4 mm
Mounting type
Other
Surface
Powder coated
RAL number
7001
Impact resistance
IK09
IP protection)
IP65
Protection class (NEMA)
Other
Protection class
I
Statistical commodity code
85365011
Depth
600 mm
Housing material
Aluminum
