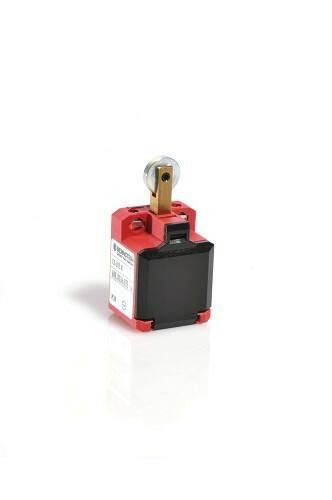

Smallest switch for safety applications, two-channel safety monitoring possible, with captive snap-on cover, also suitable for front mounting, installation advantage: snap-on cover can be unlocked with a screwdriver - easy cover closure, transparent cover protects the control area during installation and facilitates adjustment.
| Property | Value |
| Protection class (IP): | IP20 |
| Housing material: | Plastic |
| Weight: | 0.02 |
| Weight unit: | KG |
| Statistical commodity number: | 85365011 |
| Switching function: | Snap-action switching element |
| Rated operating current Ie at AC-15, 230 V: | 3 A |
| Suitable for safety functions: | yes |
| Interface design for safety-related Communication: | without |
| Design of the electrical connection: | other |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | special design |
| Forced opening: | yes |
| Number of safety-related auxiliary contacts: | 2 |
| Design of the actuating element: | roller plunger |
| Design of the interface: | without |
| Width of the sensor: | 26 mm |
| Height of the Sensors: | 21 mm |
| Length of the sensor: | 46 mm |
| Ambient temperature during operation: | -30 - 80 °C |
| Number of contacts as normally closed: | 2 |
| Alignment of the actuating element: | Roller plunger straight |
Features
Minimal order
10 pieces
Manufacturer
HAN
6008866016
GTIN
4024337076602
Number of contacts as opener
2
Number of safety-related auxiliary contacts
2
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the actuating element
Roller tappet
Design of the electrical connection
Other
Alignment of the actuator
Roller tappet straight
Rated operating current Ie at AC-15, 230 V
3 A
Width of the sensor
26 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
Yes
Housing design
Special design
Weight
0,02
Weight unit
kg
Height of the sensor
21 mm
Length of the sensor
46 mm
Switching function
Snap action contact
IP protection)
IP20
Statistical commodity code
85365011
Ambient temperature during operation
-30 - 80 °C
Housing material
Plastic
Forced opening
Yes
