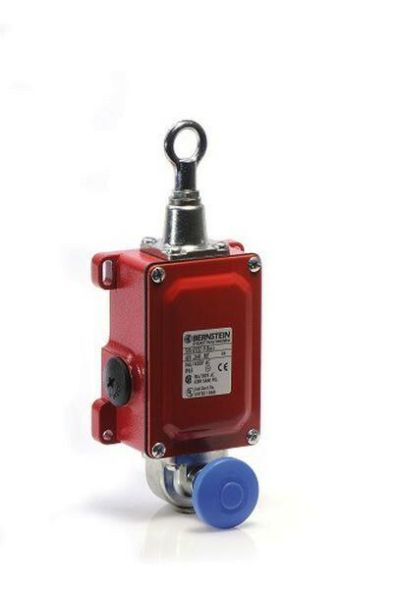

Due to normative requirements, the standard rope pull switches can only be used as control devices. Products are available in metal and insulated housings. They are operated manually by pulling on the attached rope. The basic design of the standard rope pull switches is based on that of the position switches.
| Property | Value |
| Protection class (IP): | IP65 |
| Housing material: | metal |
| Weight: | 0.61 |
| Weight unit: | KG |
| Statistical commodity number: | 85365011 |
| Forced opening: | yes |
| Switching function: | Slow action contact with overlap |
| Rated operating current Ie at AC-15, 230 V: | 10 A |
| Coating Housing: | powder-coated |
| Design of the interface for safety-related communication: | without |
| Design of the electrical connection: | Cable entry (metric) |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Number of safety-related auxiliary contacts: | 1 |
| Design of the actuating element: | other |
| Design of the interface: | without |
| Width of the sensor: | 82 mm |
| Height of the sensor: | 68 mm |
| Length of the sensor: | 196 mm |
| Ambient temperature during operation: | -30 - 80 °C |
| Number of contacts as normally closed: | 1 |
| Number of contacts as normally open: | 1 |
| Switching function latching: | yes |
| Alignment of the actuating element: | other |
Features
Manufacturer
HAN
6012431883
GTIN
4024337038099
Number of contacts as normally open
1
Number of contacts as opener
1
Number of safety-related auxiliary contacts
1
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the actuating element
Other
Design of the electrical connection
Cable entry (metric)
Alignment of the actuator
Other
Rated operating current Ie at AC-15, 230 V
10A
Housing coating
Powder coated
Width of the sensor
82 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Housing design
Cuboid
Weight
0,61
Weight unit
kg
Height of the sensor
68 mm
Length of the sensor
196 mm
Switching function
Slow-action contact with overlap
Switching function latching
Yes
IP protection)
IP65
Statistical commodity code
85365011
Ambient temperature during operation
-30 - 80 °C
Housing material
Metal
Forced opening
Yes
