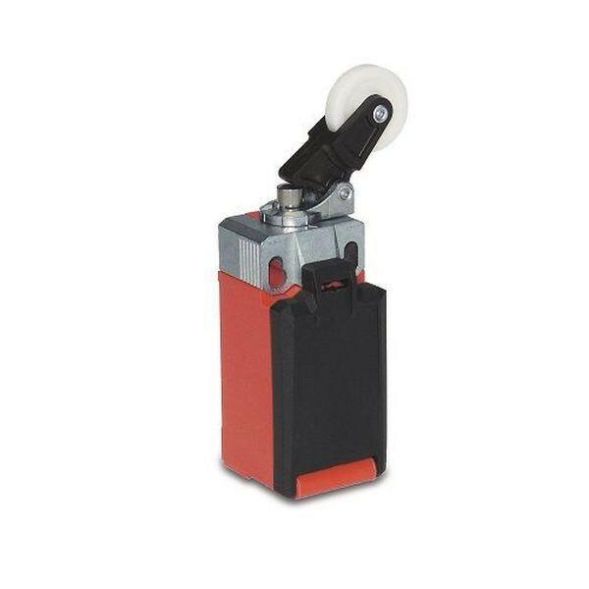

The IN62 and IN65 series are standard switches according to DIN EN 50047. Due to their dimensions and the variety of contacts and actuators, the switches can be used in almost any industrial application for safe position monitoring. The metal actuator locking and fastening clip make the product particularly robust and powerful.
| Property | Value |
| Protection class (IP): | IP66/IP67 |
| Housing material: | plastic |
| Weight: | 0.08 |
| Weight unit: | KG |
| Switching function: | Slow-action switching element |
| Rated operating current Ie at AC-15, 230 V: | 3 A |
| Suitable for safety functions: | yes |
| Design of the interface for safety-related communication: | without |
| Design of the electrical Connection: | Cable entry (metric) |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Design of the actuating element: | Angle roller lever |
| Design of the interface: | without |
| Rated operating current Ie at DC-13, 24 V: | 1.5 A |
| Width of the sensor: | 31 mm |
| Height of the sensor: | 30.3 mm |
| Length of the Sensors: | 101.5 mm |
| Ambient temperature during operation: | -30 - 75 °C |
| Number of contacts as normally open: | 2 |
| Protection class (NEMA): | 4X |
Features
Manufacturer
HAN
6083000266
GTIN
4024337090950
Number of contacts as normally open
2
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the actuating element
Angle roller lever
Design of the electrical connection
Cable entry (metric)
Rated operating current Ie at AC-15, 230 V
3 A
Rated operating current Ie at DC-13, 24 V
1.5A
Width of the sensor
31 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
Yes
Housing design
Cuboid
Weight
0,08
Weight unit
kg
Height of the sensor
30.3 mm
Length of the sensor
101.5 mm
Switching function
Slow-action switching element
IP protection)
IP66/IP67
Protection class (NEMA)
4X
Ambient temperature during operation
-30 - 75 °C
Housing material
Plastic
