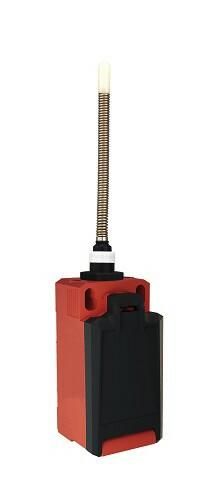

The IN62 and IN65 series are standard switches according to DIN EN 50047. Due to their dimensions and the variety of contacts and actuators, the switches can be used in almost any industrial application for safe position monitoring. The metal actuator locking and fastening clip make the product particularly robust and powerful.
| Property | Value |
| Protection class (IP): | IP67 |
| Housing material: | plastic |
| Weight: | 0.07 |
| Weight unit: | KG |
| Switching function: | Snap-action switching element |
| Rated operating current Ie at AC-15, 230 V: | 3 A |
| Suitable for safety functions: | yes |
| Design of the interface for safety-related communication: | without |
| Design of the electrical Connection: | Cable entry (metric) |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Number of safety-related auxiliary contacts: | 1 |
| Design of the actuating element: | Spring rod |
| Design of the interface: | without |
| Rated operating current Ie at DC-13, 24 V: | 1.5 A |
| Width of the sensor: | 31 mm |
| Height of the Sensors: | 30.3 mm |
| Sensor length: | 197 mm |
| Ambient temperature during operation: | -30 - 75 °C |
| Number of contacts as normally closed: | 1 |
| Number of contacts as normally open: | 1 |
| Protection class (NEMA): | 4X |
Features
Manufacturer
HAN
6083000361
GTIN
4024337095610
Number of contacts as normally open
1
Number of contacts as opener
1
Number of safety-related auxiliary contacts
1
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the actuating element
Spring bar
Design of the electrical connection
Cable entry (metric)
Rated operating current Ie at AC-15, 230 V
3 A
Rated operating current Ie at DC-13, 24 V
1.5A
Width of the sensor
31 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
Yes
Housing design
Cuboid
Weight
0,07
Weight unit
kg
Height of the sensor
30.3 mm
Length of the sensor
197 mm
Switching function
Snap action contact
IP protection)
IP67
Protection class (NEMA)
4X
Ambient temperature during operation
-30 - 75 °C
Housing material
Plastic
