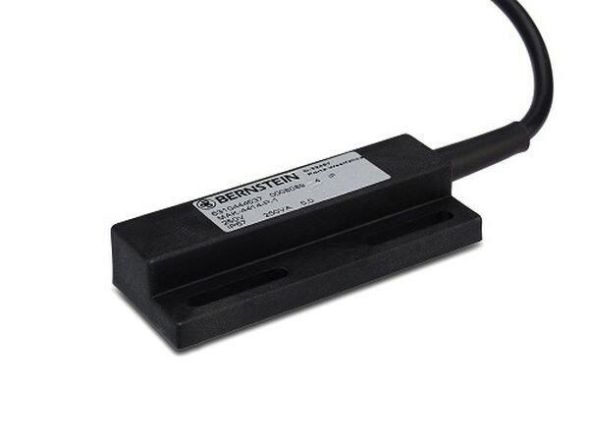

Electromechanical magnetic switches are based on reed contacts, which change their electrical behavior when an actuating magnet approaches them. The universal current-compatible switches are available as normally open, normally closed, changeover and bistable switches.
| Property | Value |
| Protection class (IP): | IP67 |
| Voltage type: | AC/DC |
| Housing material: | Plastic |
| Weight: | 0.08 |
| Weight unit: | KG |
| Commodity statistical number: | 85365011 |
| Type of electrical connection: | Cable |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Type of Actuation: | Magnet |
| Ambient temperature: | -5 - 70 °C |
| Rated supply voltage at AC 50 Hz: | 250 V |
| Rated supply voltage at AC 60 Hz: | 250 V |
| Rated supply voltage at DC: | 250 V |
| Switching distance: | 19 mm |
| Number of contact outputs with signaling function: | 1 |
| Design of the switching output: | Reed contact |
| Secured switching distance OFF: | 47 mm |
| Secured switching distance IN: | 19 mm |
| Sensor width: | 30 mm |
| Sensor height: | 15 mm |
| Sensor length: | 80 mm |
| Protection rating (NEMA): | 4 |
Features
Rated supply voltage for DC
250 V
Secured switching distance ON
19 mm
Manufacturer
HAN
6314244718
GTIN
4024337064289
Type of operation
Magnet
Design of the switching output
Reed contact
Design of the electrical connection
Cable
Width of the sensor
30 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Weight
0,08
Weight unit
kg
Height of the sensor
15 mm
Length of the sensor
80 mm
Switching distance
19 mm
IP protection)
IP67
Protection class (NEMA)
4
Voltage type
AC/DC
Statistical commodity code
85365011
Ambient temperature
-5 - 70 °C
Housing material
Plastic
