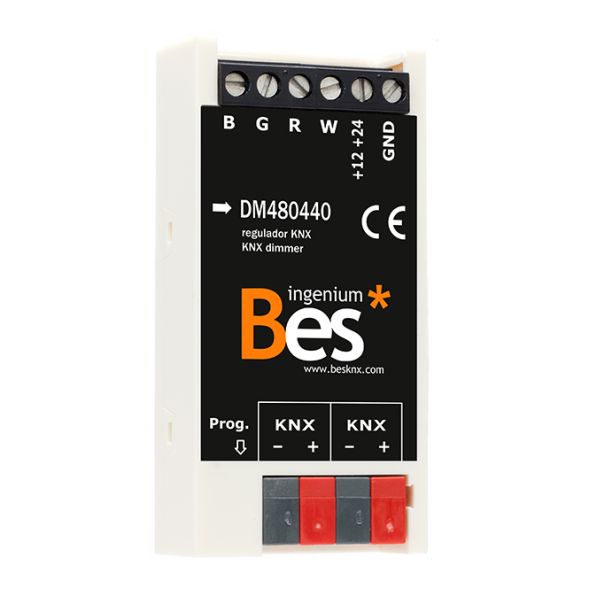

![CDATA[Dimmer 4-channel RGB + white LED control modules KNX actuator proportional RGB LED modules with additional white color, including the possibility of controlling each channel independently. Programming colorful scenes and sequences. 3 maximum operating power per channel. PWM dimming method. Input voltage: 10-24 V DC Power supply for LED Output power: 4 x 30 W (10 V DC) 4 x 78 W (24 V DC) Supply: 29 V DC the KNX bus Consumption: 5 mA KNX bus Dimensions: 77 x 35 x 17 mm Mounting: recessed or ceiling]]>
Features
Compatible with Google Assistant
N/A
Thread
No
Other bus systems
-
Operation via Bluetooth
No
EAN
8436596833241
Siemens LOGO!
No
Hager KNXeasy
No
KNX-Secure
No
Mbus
No
Modbus TCP
No
Samsung SmartThings
N/A
Size of connection terminal in mm2
0.00
Wi-Fi
No
Zigbee
No
active power measurement
No
Connection type CC
-
Fan coil
No
Louvre
No
Nominal voltage outputs
12 - 24 V DC
Switching
no
With Netatmo
No
Amazon Alexa
N/A
BAB-Tec
No
DALI Device Type
-
Gira One
No
Heating
No
JUNG HOME
No
KNX-RF
No
KNX-TP
Yes
Matter
No
Modbus
No
On-site/manual operation
No
Shelly
No
Theben LUXORliving
No
Wiser Home
No
Color control
-
Different phases can be connected
No
Division units
4
Manufacturer type
RGBWL-K
Output power in W
78.00
Transmission type
Cable
Apple HomeKit
N/A
Casambi
No
ENOcean
No
KNX USB interface
Yes
Modbus RTU
No
Parallel operation of channels possible
No
DALI
No
Class
dimming actuators
Dimming process
PWM constant voltage CV
Day/night function
No
Dimming
Yes
Free@home
No
HAN
DM480440
Manufacturer
BESKNX
GTIN
8436596833241
Number of outputs
4
Mounting type
